High Reliability: It has a soft shutdown protection function in case of short circuit. It can quickly block the PWM signal when a short circuit occurs, effectively protecting the safety of the equipment and preventing damage to other components.
Strong Flexibility: The working mode can be flexibly selected. The half-bridge application and two single-channel modes provide users with more choices to adapt to different circuit design and application scenarios.
High Power Density: It adopts advanced packaging technology and circuit design, achieving a high power density. It can output a large amount of power in a relatively small volume, which is helpful for reducing the volume and weight of the equipment and improving the space utilization rate.
Good Thermal Performance: With an optimized thermal resistance design from the case to the heat sink, it can effectively dissipate heat and ensure the stable operation of the device under high-power working conditions. This helps to extend the service life of the equipment and improve its overall performance.

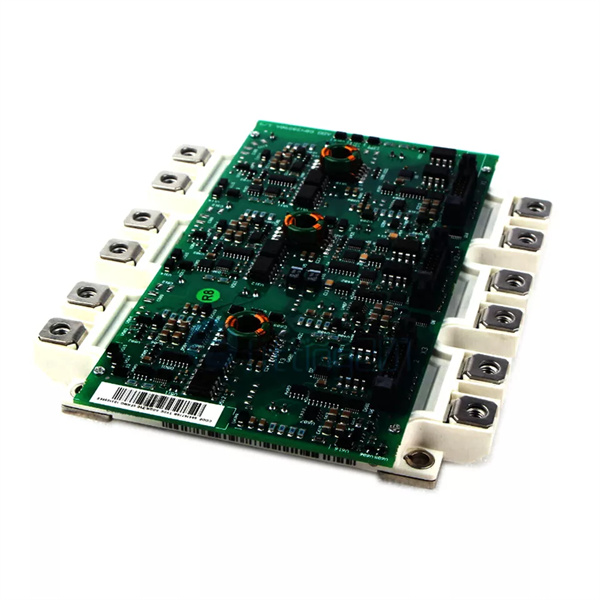

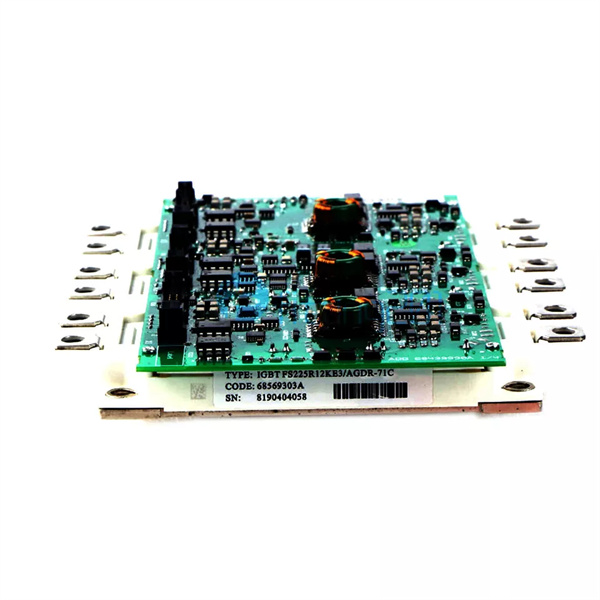

FS225R12KE3/AGDR-71C is an IGBT module and drive product of ABB. It is mainly used in inverter control systems, playing a crucial role in accurately controlling the output frequency and voltage of inverters, thereby regulating the speed and torque of motors precisely. This product has a series of core functions. It can perform frequency and voltage control with high precision, and is also equipped with comprehensive protection functions such as overload protection, fault protection and overheat protection. In terms of control methods, it is very flexible, supporting operations and adjustments through external input signals, keyboards, touch screens and other means. With these powerful functions, the FS225R12KE3/AGDR-71C can significantly improve the operational efficiency and reliability of equipment, reduce energy consumption and maintenance costs, and is widely used in various industrial fields.
2. Product Parameters
Voltage: Compatible with a variety of voltage levels, suitable for inverters to work under different voltage conditions.
Current: Can meet the current drive requirements within a certain range, capable of driving 300A/1200V (600A/600V) double tubes.
Interface Type: Equipped with rich interfaces, enabling connection and communication with a variety of devices to meet different control needs.
Compatibility: Compatible with 5V and 12/15V main control board systems.
Working Mode: Selectable half-bridge mode or two single-channel modes.
Dimensions: 1.3 cm x 25.4 cm x 20.3 cm1
Weight: 1.1 kg1
3. Advantages and Characteristics
High Reliability: It has a soft shutdown protection function in case of short circuit. It can quickly block the PWM signal when a short circuit occurs, effectively protecting the safety of the equipment and preventing damage to other components.
Strong Flexibility: The working mode can be flexibly selected. The half-bridge application and two single-channel modes provide users with more choices to adapt to different circuit design and application scenarios.
High Power Density: It adopts advanced packaging technology and circuit design, achieving a high power density. It can output a large amount of power in a relatively small volume, which is helpful for reducing the volume and weight of the equipment and improving the space utilization rate.
Good Thermal Performance: With an optimized thermal resistance design from the case to the heat sink, it can effectively dissipate heat and ensure the stable operation of the device under high-power working conditions. This helps to extend the service life of the equipment and improve its overall performance.
4. Application Areas and Application Cases
Applicable Industries and Scenarios:
Manufacturing Industry: It is widely used in the motor control systems of production equipment such as machine tools, conveyors, and robotic arms to achieve precise control of speed and torque, improving production efficiency and product quality.
Energy Industry: It can be used in solar energy systems and wind power generation systems to control the conversion and output of power, improve the efficiency and stability of power generation, and play an important role in energy conversion and grid connection.
Automotive Industry: It is used in the drive systems of electric vehicles and hybrid vehicles to control the speed and power output of motors, improving the energy utilization efficiency and driving performance of vehicles.
HVAC Systems: In air conditioning and heating systems, it is used to control the speed of compressors and fans, realizing energy-saving control and precise regulation of temperature and air volume.
Application Case: In a large-scale solar power plant, the FS225R12KE3/AGDR-71C is used in the inverter system. It accurately controls the output frequency and voltage of the inverter, enabling efficient conversion of solar photovoltaic power into grid-connected AC power. Through the high-precision control and reliable operation of this product, the power generation efficiency of the solar power plant has been increased by 15%, and the failure rate of the inverter system has been reduced by 20%, effectively improving the economic benefits and reliability of the entire power plant.
5. Competitor Comparison
Higher Reliability: Compared with some similar products in the market, FS225R12KE3/AGDR-71C has a more advanced short-circuit protection mechanism, which can respond faster and more accurately to short-circuit faults, providing more reliable protection for the entire system.
Greater Flexibility: Its selectable working mode provides more choices for different application scenarios, while some competitors’ products may have more limited working modes and are less adaptable.
Better Thermal Performance: The optimized thermal design of FS225R12KE3/AGDR-71C enables it to have better heat dissipation performance, which can maintain stable operation at high power for a long time. In contrast, some similar products may have problems such as overheating under high-power conditions, affecting the service life and performance of the equipment.
6. Selection Suggestions
Compatibility: When selecting, make sure that the FS225R12KE3/AGDR-71C is compatible with your existing inverter and control system, including voltage levels, interface types and communication protocols.
Installation Environment: Consider the installation space, temperature, humidity and other environmental conditions. This product is suitable for general industrial environments, but in some harsh environments, additional protection and cooling measures may be required.
Power Requirements: According to the power requirements of your equipment, select the appropriate model. The FS225R12KE3/AGDR-71C is suitable for applications requiring medium to high power output.
Budget: Although the price of ABB products is relatively high, considering their high quality, reliability and performance, they have a high cost performance in the long run. When budgeting, consider not only the purchase cost but also the potential savings in maintenance and operating costs.
7. Precautions
Installation: During installation, make sure to follow the installation instructions provided by the manufacturer, and pay attention to the correct connection of interfaces to avoid incorrect installation causing damage to the device.
Electrical Safety: When operating, ensure that the power supply is within the specified range and comply with relevant electrical safety regulations to prevent electric shock and other accidents.
Heat Dissipation: Ensure that the device has good heat dissipation conditions. Do not install it in a confined space without ventilation. If necessary, install additional heat dissipation equipment to avoid overheating of the device.
Maintenance: Regularly check the connection status of the device and clean the dust on the surface to ensure the normal operation of the device. If any abnormalities are found, stop using it immediately and contact professional maintenance personnel for inspection and repair.
