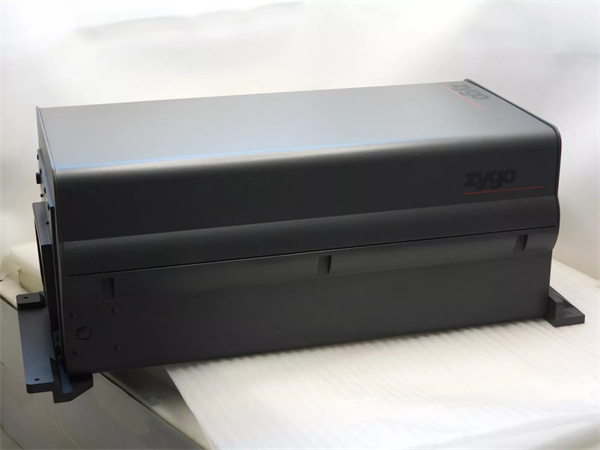

ZYGO 6555-0100-01

Description

1. Product Description

2. Product Parameters

• Wavelength: Usually works at a specific laser wavelength, such as 633nm (common He – Ne laser wavelength), which is suitable for a variety of optical measurement applications.
• Measurement accuracy: Can achieve high – precision measurement, with a measurement accuracy reaching the nanometer level, which can meet the strict requirements of high – end optical manufacturing and other fields.
• Aperture: The specific aperture size needs to be determined according to the actual model, but generally, it can be adapted to different – sized optical components for measurement, such as 12 – inch or other specifications.
• Interface type: It is equipped with a standard optical interface and a data output interface, which can be easily connected to other optical components and computer – aided measurement systems for convenient data acquisition and analysis.
• Compatibility: Compatible with a variety of Zygo – brand measurement software and some common optical metrology software, which can be seamlessly integrated into the user – existing measurement system.


  ZYGO 6555-0100-01

3. Advantages and Characteristics

• High – precision measurement: The Zygo 6555-0100-01 adopts advanced interference measurement technology and a high – stability laser source, which can provide extremely high – precision measurement results. For example, in the measurement of optical surface flatness, it can accurately detect the surface micro – roughness and shape error, with an accuracy reaching the nanometer level.
• Strong anti – interference ability: It is equipped with a vibration – resistant design and an anti – air – turbulence system. Even in a complex industrial environment with certain vibrations and air – flow disturbances, it can still ensure the stability of the measurement results and reduce the influence of external factors on the measurement accuracy.
• Comprehensive measurement function: It can not only measure the surface form of optical components, but also measure the transmitted wavefront, radius of curvature and other parameters, providing users with a comprehensive set of optical metrology solutions.

4. Application Areas and Application Cases

• Applicable industries and scenarios: This product is widely used in the semiconductor, optical communication, aerospace, and precision machining industries. For example, in the semiconductor industry, it is used to measure the flatness and surface form of silicon wafers and optical masks to ensure the accuracy of semiconductor manufacturing processes. In the aerospace field, it is used to measure the surface quality of optical components of satellite – borne cameras and telescopes to ensure the imaging quality of space – borne optical systems.
• Application case: A well – known semiconductor manufacturing enterprise introduced the Zygo 6555 – 0100 – 01 mesa horizontal laser interferometer to measure the surface flatness of silicon wafers. Through high – precision measurement, the enterprise can accurately control the thickness and flatness of silicon wafers, improve the yield of semiconductor chips, and reduce production costs. At the same time, it also provides a reliable guarantee for the performance and quality of semiconductor products, helping the enterprise to maintain a leading position in the market competition.

5. Comparison with Competitors

Compared with similar products in the market, the Zygo 6555 – 0100 – 01 has higher measurement accuracy and better stability. Its unique anti – interference design and comprehensive measurement function enable it to have more advantages in complex industrial environments and high – precision measurement requirements. In addition, Zygo’s strong technical strength and perfect after – sales service system can also provide users with more comprehensive support and guarantees, allowing users to use the product with more peace of mind.

ZYGO 6555-0100-01

6. Selection Recommendations

• Compatibility: When selecting, it is necessary to ensure that the Zygo 6555 – 0100 – 01 is compatible with the user – existing optical components and measurement systems to avoid compatibility problems that may affect the normal operation of the equipment.
• Installation environment: Consider the installation space and environmental conditions. This instrument is sensitive to vibration and air – flow, so it is necessary to choose a relatively stable and clean installation environment to ensure the accuracy of measurement results.
• Budget: The price of high – precision laser interferometers is relatively high. Users need to comprehensively consider their own economic strength and actual needs to determine whether the performance – price ratio of this product meets their requirements.

7. Precautions

• Installation: During installation, it must be carried out in strict accordance with the operating instructions to ensure the correct connection of each component and avoid damage to the optical components caused by improper operation.
• Operation: The operator should receive professional training and be familiar with the operation steps and precautions of the instrument to avoid incorrect operation that may affect the measurement results or damage the equipment.
• Maintenance: Regularly clean the optical components to prevent dust and dirt from affecting the measurement accuracy. At the same time, regularly check the performance of the instrument and replace the wearing parts in a timely manner to ensure the normal operation of the equipment.
