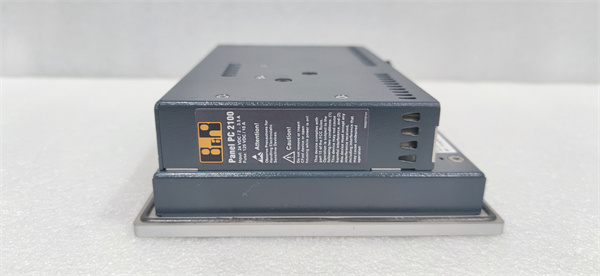

The B&R 5AP1120.0702-000 is a compact, high-performance touch panel computer designed for industrial automation and machine control applications. Part of B&R’s Automation Panel series, this 7-inch TFT display offers a WVGA resolution (800 × 480 pixels) with analog resistive touch technology, ensuring intuitive user interaction in challenging environments. Equipped with a robust processor and integrated interfaces, the 5AP1120.0702-000 supports real-time data processing, remote monitoring, and seamless integration with B&R’s Automation Studio software. Its IP65-rated front panel and wide operating temperature range (-20°C to +60°C) make it suitable for harsh industrial settings.
2. Technical Parameters
Parameter
Specification
Display Type
TFT LCD, 7-inch
Resolution
WVGA (800 × 480 pixels)
Touch Technology
Analog resistive
Brightness
400 cd/m² (adjustable)
Contrast Ratio
700:1
Interfaces
Ethernet, USB 2.0, RS485/RS232
Processor
800 MHz embedded controller
Memory
512 MB DDR3 + 4 GB eMMC
Operating Temperature
-20°C to +60°C (-4°F to +140°F)
Storage Temperature
-40°C to +70°C (-40°F to +158°F)
IP Rating
Front: IP65, Back: IP20
Dimensions
209 × 153 × 48 mm (8.23 × 6.02 × 1.89 in)
Weight
1.2 kg (2.65 lbs)
3. Advantages and Features
High Performance: 800 MHz processor ensures fast data processing and multitasking.
Flexible Connectivity: Supports Ethernet, USB, and serial communication for seamless integration.
Rugged Design: IP65-rated front panel resists dust and water ingress.
Remote Access: Enables remote debugging and monitoring via B&R’s Remote Service.
Case Study: A European food processing plant improved line efficiency by 18% using the 5AP1120.0702-000 to monitor packaging machines, reducing downtime through real-time alerts.
4. Application Areas
Manufacturing: Machine control, quality monitoring, and operator interfaces.
Energy: Renewable energy systems and power plant auxiliary controls.
Logistics: Warehouse automation and conveyor systems.
Transportation: Railway signaling and vehicle testing.
5. Competitor Comparison
Enhanced Durability: IP65 rating vs. standard IP66/IP67 in comparable models.
Larger Storage: 4 GB eMMC vs. 2 GB in most competitors.
Cost-Effective: Competitive pricing with advanced features like remote access.
6. Selection Recommendations
Screen Size: Opt for the 7-inch display for space-constrained applications.
Environment: Choose IP65-rated models for dusty or wet environments.
Scalability: Pair with B&R’s X20 I/O modules for expanded control capabilities.
7. Precautions
Temperature Range: Avoid operating beyond -20°C to +60°C to prevent performance issues.
Power Supply: Use a 24 VDC power source with ±10% tolerance.
Software Updates: Regularly update firmware for compatibility with newer B&R systems.
Mounting: Ensure secure DIN rail or panel installation to avoid vibration damage.
