Description
System Architecture & Operational Principle
The ELAU MC-4/11/01/400 is a PacDrive MC-4 Series servo drive designed for Level 1 (Device) or Level 2 (Control) of the Purdue Model in industrial automation. It resides in the control cabinet (typically mounted on a DIN rail or panel) and serves as the bridge between PacDrive controllers (e.g., C400, C600) and servo motors (e.g., ELAU SH/SM series).
Upstream Communication
Receives motion commands (position, speed, torque) from PacDrive controllers via fiber optic (SERCOS) or Ethernet interfaces. These commands are generated by the controller based on inputs from sensors (e.g., encoders, proximity switches) and higher-level systems (e.g., SCADA, MES).
Downstream Communication
Transmits drive status (e.g., current, voltage, fault codes) back to the controller via the same fiber optic or Ethernet links. It also sends encoder feedback (from the servo motor) to the controller for closed-loop control, ensuring precise motion execution.
Operational Advantages
-
Modular Design: Integrates power supply, drive electronics, and communication interfaces in a compact form factor, reducing cabinet space requirements.
-
High Precision: Supports sub-micron positioning accuracy (via 24-bit absolute encoders) and fast dynamic response (current loop bandwidth ≥1 kHz), critical for high-speed packaging and converting applications.
-
Fault Tolerance: Features hot-swappable components (e.g., power modules, communication cards) and redundant communication links (fiber + Ethernet) to minimize downtime during maintenance or failures.
Core Technical Specifications
|
Attribute
|
Specification
|
|---|---|
|
Rated Power
|
11 kW
|
|
Input Voltage
|
Three-phase AC 380–480V (±10% tolerance)
|
|
Control Voltage
|
24 V DC (±15% tolerance, 1A max current)
|
|
Communication Interfaces
|
Fiber optic (SERCOS III), Ethernet (10/100 Mbps), RS232/RS485 (optional)
|
|
Protection Rating
|
IP20 (front panel), IP00 (rear)
|
|
Operating Temperature
|
0°C to +40°C (ambient temperature)
|
|
Storage Temperature
|
-25°C to +70°C
|
|
Dimensions (W×H×D)
|
~250 mm × 330 mm × 80 mm (exact dimensions vary by enclosure)
|
|
Weight
|
~5 kg (11 lbs)
|
|
Certifications
|
CE, UL, EN 61800-5-1 (safety standard for adjustable speed electrical power drive systems)
|
|
Motor Compatibility
|
ELAU SH/SM series servo motors (e.g., SH100, SM140)
|

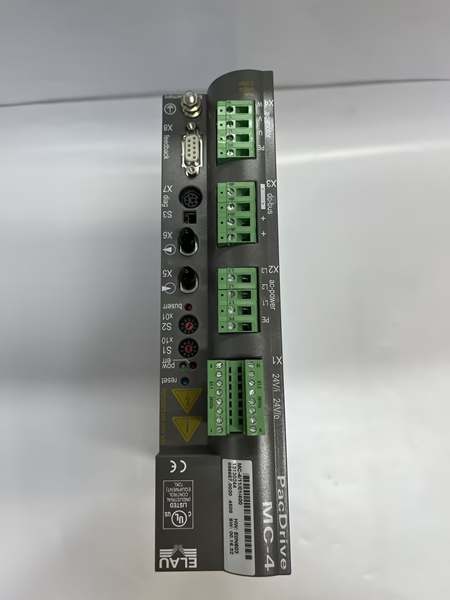

ELAU MC-4/11/01/400
Customer Value & Operational Benefits
Increased Productivity
The MC-4/11/01/400’s high-speed communication (SERCOS III) and fast dynamic response enable cycle times as low as 1 ms in packaging applications, allowing manufacturers to increase line speeds by 20–30% compared to traditional drives.
Reduced Downtime
The hot-swappable design allows technicians to replace faulty components (e.g., power modules) without shutting down the entire system. For example, a food processing plant using the MC-4/11/01/400 reported a 50% reduction in downtime during maintenance.
Energy Efficiency
The drive’s vector control algorithm optimizes power consumption by adjusting voltage and current to the motor based on load requirements. This reduces energy usage by 15–20% compared to non-vector drives, lowering operational costs.
Simplified Integration
The MC-4/11/01/400 is fully compatible with ELAU’s PacDrive ecosystem (controllers, motors, HMI), eliminating the need for custom wiring or protocol converters. This simplifies system design and reduces engineering time by 30–40%.
Field Engineer’s Notes (From the Trenches)
When installing the MC-4/11/01/400, always use shielded fiber optic cables for SERCOS communication—unshielded cables can cause signal loss or interference, leading to erratic motor behavior. I once saw a site where a contractor used a non-shielded cable, resulting in a 2-hour downtime until the cable was replaced.Another gotcha: verify the motor’s encoder type—the MC-4/11/01/400 supports 24-bit absolute encoders (e.g., EnDat 2.2), but if the motor has a different encoder (e.g., incremental), you’ll need to use a signal converter. Always check the motor’s datasheet before installation.If the drive’s “FAULT” LED is red, check the power supply first—the 24V DC control voltage must be within ±15% of the nominal value. I’ve fixed countless “fault” errors by replacing a faulty power supply.
Real-World Applications
-
Packaging Machinery: Blister Packaging LinesA pharmaceutical company uses the MC-4/11/01/400 to drive servo motors on a blister packaging line. The drive’s high precision (±0.001° positioning) ensures that tablets are placed accurately into blisters, reducing waste by 15%. The fiber optic communication (SERCOS III) enables synchronization between the feeding, sealing, and cutting stations, achieving a line speed of 200 blisters per minute.
-
Converting Machinery: Film Slitting MachinesA film manufacturer uses the MC-4/11/01/400 to control the slitting knives on a film slitting machine. The drive’s fast dynamic response (current loop bandwidth ≥1 kHz) allows the knives to adjust to changes in film tension instantly, preventing tears or uneven edges. The Ethernet interface enables remote monitoring and adjustment of the drive’s parameters via the plant’s SCADA system.

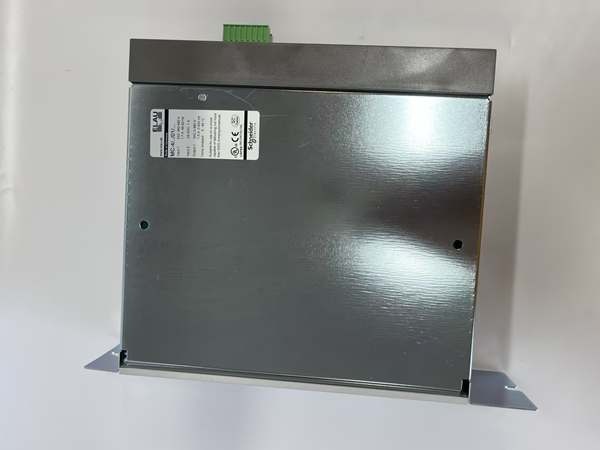

ELAU MC-4/11/01/400
High-Frequency Troubleshooting FAQ
Q: What does the “FAULT” LED indicate on the MC-4/11/01/400?
A: The red “FAULT” LED indicates a critical error, such as:
-
Overcurrent: The motor is drawing more current than the drive’s rated value (e.g., due to a jammed motor).
-
Overvoltage: The input voltage is above the drive’s tolerance (e.g., 500V AC instead of 400V AC).
-
Encoder Fault: The motor’s encoder is not sending valid signals (e.g., broken cable, faulty encoder).Check the drive’s fault log (via PacDrive software) for detailed error codes and follow the manufacturer’s troubleshooting steps.
Q: Can the MC-4/11/01/400 be used with non-ELAU motors?
A: No, the drive is designed exclusively for ELAU SH/SM series servo motors. Non-ELAU motors may not have the correct encoder type or power ratings, leading to inaccurate motion control or drive damage.
Q: How do I update the drive’s firmware?
A: Firmware updates are done via the Ethernet port using ELAU’s PacDrive Engineer software. Download the latest firmware from ELAU’s website, connect the drive to the PC via Ethernet, and follow the on-screen instructions to install it.
Q: Why is the drive not responding to commands from the controller?
A: Check three things first:
-
Communication Link: Ensure the fiber optic or Ethernet cable is securely connected to the drive and the controller.
-
Protocol Configuration: Verify that the controller and drive are using the same communication protocol (e.g., SERCOS III).
-
Drive Status: Check the drive’s “READY” LED—if it’s off, the drive is not receiving power or has a fault.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
