Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8110B |
| Manufacturer | ICS TRIPLEX |
| Product category | Trusted TMR Processor Module |
| Input Voltage Range | 20 to 32 V DC |
| Maximum Load | 80 W |
| Processor Clock | 100 MHz |
| Memory Type and Size | – DRAM: 16 MB EDO, 60 ns <br> – EPROM: 512 kB <br> – FLASH: 2 MB <br> – NVRAM: 128 kB |
| Retained Variable Storage | – Booleans: 1 byte <br> – Analogues: 4 bytes <br> – Timers: 5 bytes |
| SOE Buffer Size | 1000 events, expandable to 4000 events with CI buffer |
| I/O Interface | Triple redundant Inter-Module Bus |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Non-Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity Range | 10% to 95% RH (non-condensing) |
| Dimensions | 266 mm (H) × 93 mm (W) × 303 mm (D) |
| Weight | 2.94 kg (6.48 lb) |
| Certifications | IEC 61508 SIL 3, CE, UL, CSA |

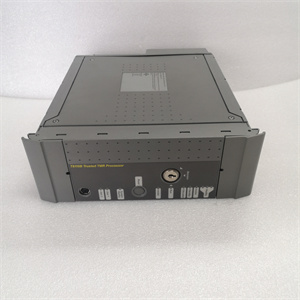

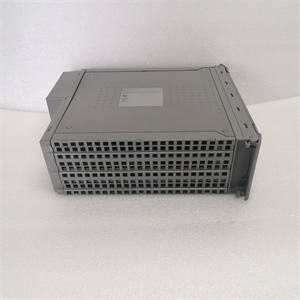

ICS TRIPLEX T8110B
Product Introduction
The ICS TRIPLEX T8110B is a high-performance Trusted TMR (Triple Modular Redundant) Processor Module designed for critical industrial control systems. It provides robust control and monitoring capabilities, ensuring high availability and reliability in mission-critical applications. This module is part of the ICS TRIPLEX series, known for its fault-tolerant architecture and advanced safety features.
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR)
The ICS TRIPLEX T8110B employs a TMR architecture, providing three independent signal paths for each input channel. This design ensures continuous operation even if one channel fails, enhancing system reliability.
High Reliability and Fault Tolerance
This module supports comprehensive diagnostics, monitoring, and testing for rapid fault identification. It also features a fully shielded design for Electro-Magnetic Compatibility (EMC), ensuring reliable operation in harsh industrial environments.
Advanced Encryption Technology
The ICS TRIPLEX T8110B uses advanced encryption protocols to protect data from unauthorized access, ensuring secure communication between industrial assets.
Wide Compatibility
The module supports multiple communication protocols, including Ethernet/IP, Modbus TCP, and RS-232/422/485, ensuring seamless integration with various control systems.

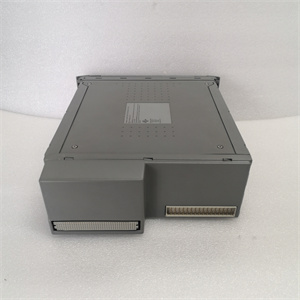

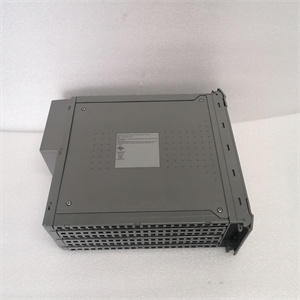

ICS TRIPLEX T8110B
Typical Application Scenarios
The ICS TRIPLEX T8110B is widely used in industries where high reliability and safety are paramount, such as:
-
Oil & Gas: Monitoring and controlling critical processes in refineries and drilling operations.
-
Power Generation: Real-time monitoring and control of turbines and generating units.
-
Chemical Processing: Process control in reactors, mixers, and separation units.
-
Water Treatment and Utilities: Ensuring reliable communications between distributed sensors, controllers, and central monitoring systems.
Related Model Recommendations
-
ICS TRIPLEX T8403C: A digital input module with high reliability and availability.
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8110B, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (20 to 32 V DC) and that the operating temperature range (0°C to 60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8110B. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T8110B is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
