Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T8431 |
| Manufacturer | ICS TRIPLEX |
| Product category | Analog Input Module |
| Operating Voltage | 20 to 32 V DC |
| Number of Inputs | 40 Channels |
| Input Current Range | 0-22 mA |
| Input Voltage Range | 0-6 V DC |
| Sample Update Time | 0.5 ms |
| Resolution | 3.9 µA (1/256 mA) |
| Safety Accuracy | ±1% of full scale |
| Calibration Accuracy | 0.03% |
| Recommended Calibration Interval | 2 years |
| Circuit Type | Fault tolerant, fully triplicated with optional line monitoring |
| Event Resolution | 1 ms |
| Time-Stamp Accuracy | ±0.5 ms |
| Field Common Isolation | ±250 V DC (sustained), ±2.5 kV DC (maximum) |
| Channel to Channel Crosstalk | -40 to -60 dB |
| Power Consumption | 15-18 W |
| Self-Test Interval | 2 minutes |
| Operating Temperature Range | -5°C to 60°C (23°F to 140°F) |
| Non-operating Temperature Range | -25°C to 70°C (-13°F to 158°F) |
| Temperature Change Rate | 0.5°C/min |
| Operating Humidity | 10% to 95% RH (non-condensing) |
| Dimensions | 266 mm (H) × 31 mm (W) × 303 mm (D) |
| Weight | 1.149 kg (2.5 lbs) |
| Certifications | IEC 61508 SIL 3, UL, CE |

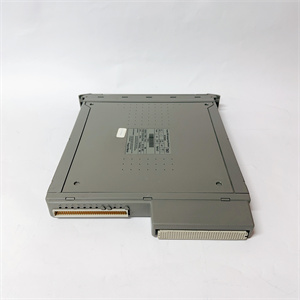

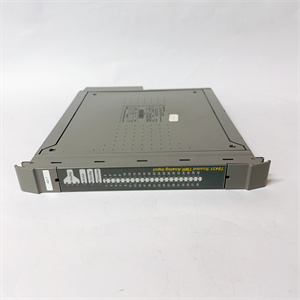

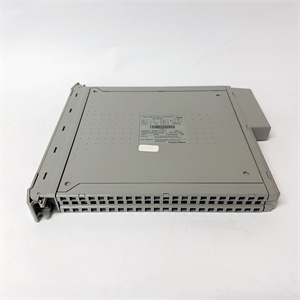

ICS TRIPLEX T8431
Product Introduction
The ICS TRIPLEX T8431 is a high-performance analog input module designed for industrial automation and control systems. It is part of the ICS TRIPLEX Trusted TMR (Triple Modular Redundant) series, known for its robustness and reliability in critical applications. This module interfaces with 40 sourcing field input devices, acting as a current sink for all connected devices. It features comprehensive diagnostic tests and a built-in line-monitoring function to detect open and shorted field cables.
Core Advantages and Technical Highlights
Triple Modular Redundancy (TMR)
The ICS TRIPLEX T8431 employs a TMR architecture, providing three independent signal paths for each input channel. This design ensures continuous operation even if one channel fails, enhancing system reliability and fault tolerance.
High Precision and Reliability
This module offers high measurement accuracy with a resolution of 3.9 µA (1/256 mA) and a safety accuracy of ±1% of full scale. It supports a wide input range (0-6 V DC and 0-22 mA) and features a sample update time of 0.5 ms, ensuring precise data acquisition.
Comprehensive Diagnostics
The module includes onboard diagnostics for detecting faults such as open circuits, short circuits, and overrange conditions. It also provides Sequence of Events (SOE) reporting with a resolution of 1 ms, critical for fault analysis and historical data queries.
Hot-Swappable Design
The ICS TRIPLEX T8431 supports hot-swapping, allowing modules to be replaced or maintained without disrupting system operation. This feature minimizes downtime and enhances maintenance efficiency.
ICS TRIPLEX T8431
Typical Application Scenarios
The ICS TRIPLEX T8431 is widely used in industries where high reliability and safety are paramount, such as:
-
Oil & Gas: Sensor input for drilling, refining, and pipeline monitoring systems.
-
Power Generation: Turbine monitoring and control in nuclear, hydro, and fossil fuel plants.
-
Chemical Processing: Process control in reactors, mixers, and separation units.
-
Manufacturing: Automation control systems for production lines and robotic interfaces.
-
Transportation: Rail and metro system signal monitoring and control.
Related Model Recommendations
-
ICS TRIPLEX T8451: A digital output module with high reliability and availability.
-
ICS TRIPLEX T8480C: An analog output module with high precision and reliability.
-
ICS TRIPLEX T8310: An expansion cable for extending the system’s backplane.
-
ICS TRIPLEX T8432: An analog input module with high precision and reliability.
-
ICS TRIPLEX T8449: A valve monitor module with high precision and reliability.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T8431, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (20 to 32 V DC) and that the operating temperature range (-5°C to 60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T8431. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T8431 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
