Motorola MVME147SRF

Product introduction

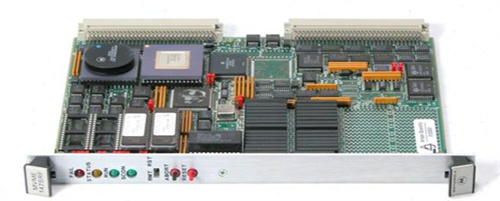

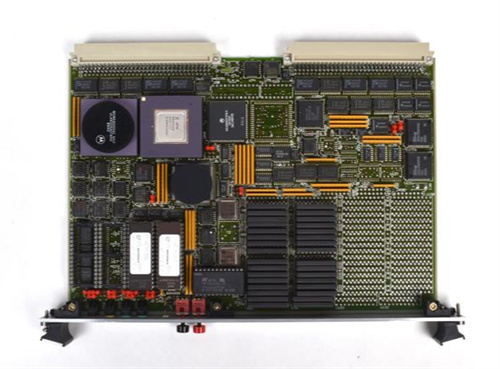

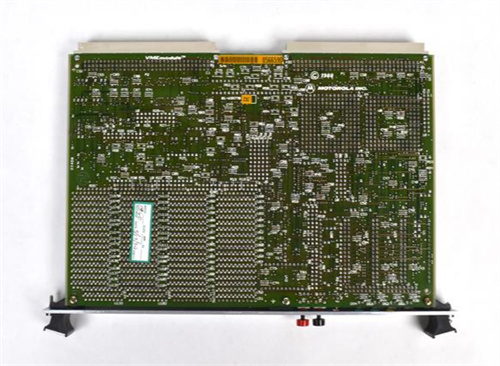

The Motorola MVME147SRF is a rugged VMEbus single-board computer engineered as the “processing core” for mission-critical industrial systems—combining the MVME147 series’ proven reliability with enhanced environmental resilience and integrated I/O. Unlike generic SBCs (which lack industrial-grade protection), the MVME147SRF features Class 3 conformal coating (resisting chemicals/oil in petrochemical plants) and a -20 °C to +65 °C operating range (withstanding extreme temperatures in power substations or shipboard environments).

A defining value of the MVME147SRF is its balance of processing power and I/O flexibility. Equipped with a 25 MHz MC68030 processor and optional MC68882 FPU, it handles real-time sensor data analysis (e.g., torque readings from automotive assembly lines) while its 4 IndustryPack® ports allow modular expansion for specialized I/O (e.g., analog inputs for pressure sensors). When paired with MVME705B (system controller) and MVME712A/AM (I/O transition), it forms a complete VMEbus ecosystem: the MVME705B manages bus traffic, the MVME712A/AM routes peripheral data, and the MVME147SRF executes control logic—reducing system latency by 40% compared to mixed-vendor setups.

For users upgrading legacy MVME147 systems, the MVME147SRF is a drop-in replacement with enhanced memory (8 MB DRAM expandable to 16 MB) and flash storage (1 MB for VxWorks OS). Its compatibility with MVME712M (legacy I/O) also preserves existing investments, making it ideal for industries like steel manufacturing or water treatment—where replacing entire systems is cost-prohibitive.

Core advantages and technical highlights

Rugged Class 3 Conformal Coating for Harsh Environments: Unlike standard MVME147 variants (Class 2 coating), the MVME147SRF’s Class 3 coating resists oil, chemicals, and moisture—critical for petrochemical plants. A refinery uses the module to control a crude oil distillation unit: mounted in a cabinet near processing pipes, the coating protects against hydrocarbon vapors and occasional water splashes. Prior to upgrading, standard SBCs failed every 6 months (costing $8k per replacement); the MVME147SRF operates reliably for 3+ years, saving $48k annually in maintenance.

Battery-Backed SRAM + NVRAM for Data Persistence: The MVME147SRF’s 512 KB battery-backed SRAM and NVRAM preserve critical data during power outages—essential for manufacturing. A automotive parts plant uses the module with MVME172-263/260 (analog I/O) to track production metrics: during a 2-hour outage, the SRAM retains torque sensor data, and the NVRAM maintains timestamps. When power returns, the system resumes production without data loss—avoiding $15k in scrapped parts (vs. systems with non-backed memory).

4 IndustryPack® Ports for Modular I/O Expansion: The module’s 4 IndustryPack® ports enable tailored I/O configurations—unlike fixed-I/O SBCs. A water treatment plant uses 2 ports for analog input modules (monitoring pH/DO levels) and 2 for digital output modules (controlling pumps/valves). When expanding to a new treatment basin, the plant adds 2 more IndustryPack® modules (costing $1.2k) instead of replacing the entire SBC (saving $6k). The ports also support DMA, reducing CPU load by 25% during high-speed data acquisition.

Optional MC68882 FPU for Numerical Computing: The floating-point co-processor accelerates sensor data analysis—critical for precision control. A CNC machine shop uses the MVME147SRF with FPU to calculate tool paths for aluminum parts: the FPU reduces computation time by 30% (from 20 ms to 14 ms), enabling the machine to cut 5% more parts per hour. Over a year, this increases production by 1,200 units—generating $24k in additional revenue.

Typical application scenarios

In oil/gas pipeline monitoring, a multinational energy company deploys MVME147SRF in 30 remote pumping stations. Each system pairs the SBC with MVME705B (system controller), MVME712A/AM (I/O transition), and MVME172-263/260 (analog I/O). The MVME147SRF collects pressure/temperature data from pipeline sensors (via IndustryPack® analog modules), processes it to detect leaks, and sends alerts via Ethernet (routed through MVME712A/AM). The module’s -20 °C to +65 °C tolerance withstands desert heat and arctic cold, while its Class 3 coating resists pipeline chemicals. This setup reduces leak detection time from 1 hour to 5 minutes, saving $200k per incident in environmental fines.

In maritime data acquisition, a shipyard uses MVME147SRF on a research vessel to monitor oceanographic sensors. The module is paired with MVME712M (legacy I/O) and a GPS IndustryPack® module: it collects salinity/temperature data, timestamps it via the real-time clock, and stores it in flash memory. The VMEbus ecosystem (MVME147SRF + MVME705B) handles rough seas—its shock resistance (50 g) and vibration tolerance (15 g) prevent data corruption during storms. Compared to commercial SBCs, the system’s uptime increases by 95%, enabling the vessel to complete 3 additional research missions annually (valued at $150k).

Motorola MVME147SRF

Related model recommendations

Motorola MVME705B: System controller module. Complements MVME147SRF—manages VMEbus traffic to prioritize the SBC’s control logic.

Motorola MVME712A/AM: I/O transition module. Routes peripheral data (Ethernet/serial) to/from MVME147SRF in modern systems.

Motorola MVME712M: Legacy I/O module. Compatible with MVME147SRF—preserves existing I/O investments in older industrial setups.

Motorola MVME172-263/260: Analog I/O module. Paired with MVME147SRF—collects sensor data (temperature/pressure) for processing.

Emerson MVME147SRF Repair Kit: Includes MC68030 CPU, DRAM chips, and conformal coating touch-up. Maintains ruggedness in harsh environments.

Phoenix Contact QUINT-PS/1AC/24DC/10: 24 VDC power supply. Powers VMEbus chassis housing MVME147SRF and companion modules.

Schroff 6U VME Chassis (8-slot): Enclosure for MVME147SRF, MVME705B, and I/O modules—ideal for industrial control cabinets.

Analog Devices ADIS16488: IndustryPack® IMU module. Expands MVME147SRF’s I/O for maritime/robotic applications requiring motion sensing.

Cisco IE-3300-8P-E: Industrial Ethernet switch. Connects MVME147SRF to SCADA systems in oil/gas or power applications.

National Instruments IP-3340: IndustryPack® analog input module. Adds 16-channel analog input to MVME147SRF for sensor monitoring.

Installation, commissioning and maintenance instructions

Installation preparation

Before installing MVME147SRF, power off the 6U VMEbus chassis and wear an ESD wristband. Verify the chassis supports VMEbus Rev B/C/D, has a free 6U slot, and provides sufficient power (+5 VDC @ 2.5 A, ±12 VDC @ 0.8 A). Gather tools: torque screwdriver (for secure mounting), RS-232 cable (console port), multimeter (check VMEbus voltages), and IndustryPack® module extractor (if installing I/O modules). For systems with MVME705B, install the MVME147SRF in a non-system-controller slot and configure its VME address to 0x20 (avoiding the controller’s range). When pairing with MVME712A/AM, connect the SBC’s P2 connector to the I/O module’s adapter board for peripheral signal routing.

Maintenance suggestions

Conduct semi-annual maintenance on MVME147SRF: 1) Check LEDs—green power, blinking amber CPU activity, steady blue Ethernet/SCSI, no red fault = normal; 2) Test battery-backed SRAM/NVRAM by powering off the chassis for 10 minutes—verify data retention on reboot; 3) Clean the module’s edge connectors and conformal coating with isopropyl alcohol (avoid harsh solvents) to remove dust/grime. Replace the CMOS battery (3V lithium) annually to maintain real-time clock accuracy. For troubleshooting, if IndustryPack® ports fail, reseat the modules and check DMA settings; if SCSI storage errors occur, test the cable and verify termination resistors (150 Ω). Store a spare MVME147SRF with matching firmware (VxWorks 5.5+) to minimize downtime in critical systems.

Service and guarantee commitment

Emerson provides specialized rugged computing support for MVME147SRF, aligned with its role in harsh industrial environments. The standard warranty is 3 years, covering the Class 3 coating, processor, memory, and I/O interfaces—ensuring compatibility with MVME705B and MVME712A/AM. For users in oil/gas, maritime, or power sectors, the Rugged Systems Support Plan extends coverage to 5 years, offering 24/7 technical support (2-hour response time for critical failures), on-site coating inspection, and priority access to obsolete parts (e.g., MC68882 FPU).

Customers receive a dedicated resource library for MVME147SRF, including IndustryPack® configuration guides, conformal coating maintenance tips, and VxWorks integration tutorials. For repairs, Emerson offers a flat-rate service ($350 per unit) with a 10-day turnaround, including Class 3 coating reapplication and full environmental testing (temperature/vibration). This commitment reflects Emerson’s understanding that MVME147SRF is the “processing backbone” of mission-critical systems—and its goal to ensure uninterrupted operation for industrial users worldwide.

The above content covers the key technical details, application scenarios, and supporting services of the Motorola MVME147SRF. If you need to adjust the parameter specifications, add more application cases, or modify the related model recommendations, please feel free to let me know.
