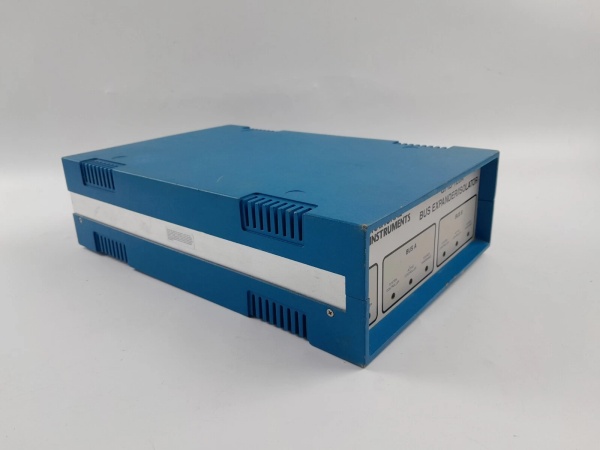

GPIB-120A: Product OverviewThe National Instruments GPIB-120A is a high-performance interface converter designed to enhance the capabilities of existing IEEE-488 (GPIB) systems through implementation of the HS488 protocol. This device functions as an active component within a GPIB system, installed between the controller and other instruments on the bus to significantly increase data transfer rates while maintaining full backward compatibility with standard IEEE-488.1 and IEEE-488.2 instruments. Its primary role is to overcome the traditional 1 MB/s limitation of standard GPIB systems, enabling faster data acquisition from instruments capable of higher transfer rates.Operating as a transparent protocol converter, the unit monitors bus traffic and implements HS488 protocol extensions when communicating with compatible devices, while automatically reverting to standard IEEE-488 timing when interacting with conventional instruments. This dual-mode operation ensures system stability while providing performance improvements where possible. The device requires installation at the beginning of the GPIB bus chain, typically connected directly to the GPIB controller, where it can manage timing negotiations with up to 14 other devices on the bus. The architecture maintains all standard GPIB functionality including bus management, device triggering, and service request handling while accelerating data transfer phases.As part of National Instruments’ GPIB product family, this converter integrates with existing GPIB controllers and instrumentation, providing a migration path to higher performance without requiring replacement of entire test systems. The device is particularly valuable in automated test equipment (ATE) systems where reducing test time through faster data transfer provides significant operational benefits. The implementation requires no software modifications for basic operation, with performance improvements being automatically realized when compatible devices are present on the bus.
• Compatibility: Full backward compatibility with standard IEEE-488 devices

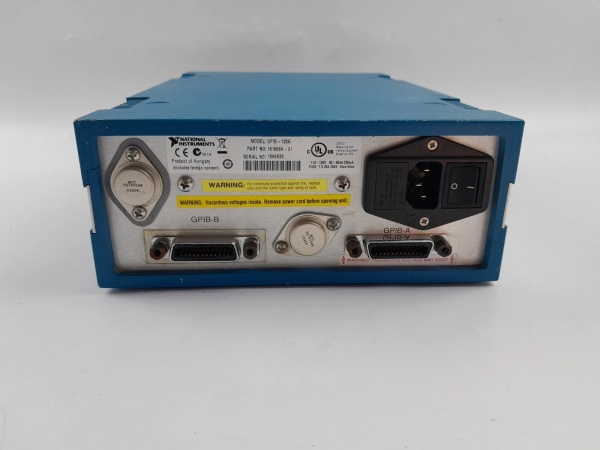

• Connectors: Two standard IEEE-488 ports (24-pin)
• Power Requirements: 100-240 VAC, 50/60 Hz (internal power supply)
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 70°C
• Relative Humidity: 10% to 90% non-condensing

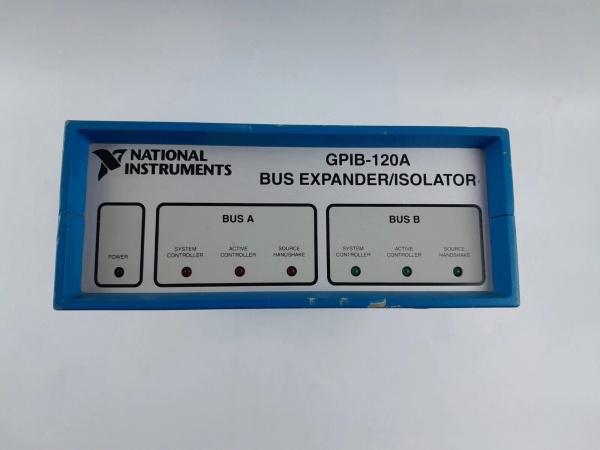

• Status Indicators: LED indicators for power and HS488 activity
• Protocol Handling: Automatic negotiation between HS488 and standard IEEE-488
• Bus Loading: Supports full 15-device GPIB bus capacity
• Dimensions: Standard benchtop instrument form factor
GPIB-120A
Core Features & Customer ValueHS488 Protocol Acceleration: The implementation of HS488 protocol provides up to 8x improvement in data transfer rates compared to standard IEEE-488 systems, reducing test time in data-intensive applications. This performance enhancement is achieved through advanced handshake timing and data transfer protocols that minimize bus settling times between bytes. For test engineers working with instruments that generate large data sets, such as digitizing oscilloscopes or spectrum analyzers, this acceleration significantly reduces overall test cycle time without requiring instrument replacement.Transparent Operation and Compatibility: The automatic protocol negotiation ensures seamless operation in mixed systems containing both HS488-capable and standard IEEE-488 instruments. This transparency allows gradual system upgrades where performance improvements are realized immediately with compatible instruments while maintaining functionality with existing equipment. The benefit for system integrators is the ability to improve performance incrementally without system-wide hardware changes, protecting existing instrument investments.System Integration and Flexibility: The dual-port design allows the converter to be inserted into existing GPIB systems without cable modifications, maintaining standard bus termination and cabling practices. The active repeater functionality also extends the maximum cable length permissible in GPIB systems, providing additional flexibility in equipment layout. For ATE systems requiring instruments to be distributed across multiple racks or separated by distance, this extension capability can simplify physical layout while maintaining signal integrity.Typical ApplicationsIn automated test systems for semiconductor characterization, the converter accelerates data transfer from high-speed digitizers and parametric measurement units, reducing wafer test time and increasing production throughput. The compatibility with existing IEEE-488 instruments allows integration with older measurement equipment while improving performance with newer HS488-capable instruments.For aerospace and defense test systems, the device enables faster data acquisition from radar and communications test equipment during production testing and qualification. The transparent operation ensures reliability during long-duration testing while providing performance benefits during data-intensive measurement sequences.In research laboratory environments, the interface improves data transfer rates from analytical instruments such as network analyzers and signal sources, reducing experiment time and increasing measurement resolution. The backward compatibility allows the converter to be used with existing laboratory equipment without requiring system reconfiguration.
