NI SCXI-1104C

Description

NI SCXI-1104C Product Description

Detailed parameter table

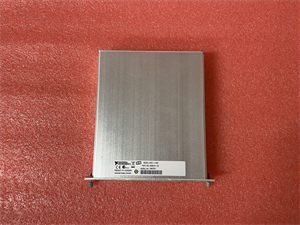

NI SCXI-1104C

Product introduction

The NI SCXI-1104C is a sophisticated signal conditioning module developed by National Instruments (NI), a trusted name in the realm of test, measurement, and automation. As an integral part of the SCXI (Signal Conditioning eXtensions for Instrumentation) platform, the SCXI-1104C is engineered to elevate the precision and reliability of data acquisition systems. With 4 differential or 8 single – ended input channels, it offers the flexibility needed to adapt to diverse measurement setups.

Capable of handling input voltages within the ±10 V range, the NI SCXI-1104C can interface with a wide array of analog signal sources. Its high – bandwidth performance, reaching up to 100 kHz, ensures that even high – frequency analog signals are accurately conditioned. The 250 V rms channel – to – channel and channel – to – ground isolation feature provides robust protection against electrical interference, guaranteeing stable and precise signal conditioning. This makes the SCXI-1104C an indispensable component for accurate data acquisition in various fields such as industrial automation, scientific research, and product testing.

Core advantages and technical highlights

Adaptable Channel Configuration: The NI SCXI-1104C‘s ability to configure 4 differential or 8 single – ended input channels gives engineers and researchers great flexibility. In scenarios where strong electrical noise is present, the differential input mode can effectively reject common – mode interference, ensuring the integrity of the measured signals. On the other hand, for applications with less complex signal sources and lower noise levels, the single – ended mode provides a simpler and more cost – effective solution.

Exceptional Signal Isolation: The 250 V rms isolation offered by the SCXI-1104C is a key strength. In industrial environments filled with electrical disturbances, this isolation feature acts as a shield, preventing unwanted electrical interference from corrupting the measurement signals. It safeguards the accuracy of the acquired data, enabling reliable decision – making in process control and quality assurance applications.

High – bandwidth and Precision: With a bandwidth of up to 100 kHz, the NI SCXI-1104C excels at conditioning high – frequency analog signals. This makes it well – suited for applications like dynamic vibration monitoring, where rapid changes in signal amplitude need to be accurately captured. The module’s precision in signal conditioning ensures that the measured data truly reflects the physical phenomena being monitored, providing valuable insights for system optimization and fault diagnosis.

Seamless System Integration: As part of the NI SCXI platform, the SCXI-1104C integrates effortlessly with other NI products. Leveraging NI – specific communication protocols, it enables straightforward setup and control within larger measurement and automation systems. This seamless integration streamlines system design, reduces development time, and enhances overall operational efficiency.

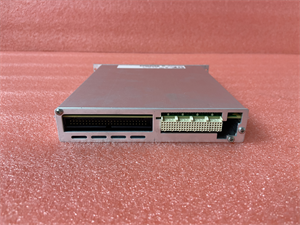

NI SCXI-1104C

Typical application scenarios

In industrial manufacturing, the NI SCXI-1104C plays a vital role in process monitoring and control. For example, in a chemical plant, it can be used to condition analog signals from sensors measuring temperature, pressure, and chemical concentration in reactors. The accurate signal conditioning provided by the SCXI-1104C ensures that the plant’s control system receives reliable data, enabling precise regulation of the production process to maintain product quality and safety.

In the field of scientific research, the module is indispensable for laboratory experiments. In a materials science research lab, it can condition signals from sensors used to measure the mechanical properties of new materials under various test conditions. The high – bandwidth and isolation features of the NI SCXI-1104C allow researchers to obtain accurate and repeatable data, facilitating in – depth analysis and discovery.

In the automotive industry, the SCXI-1104C is used for vehicle performance testing. It can condition signals from sensors placed on different components of the vehicle, such as the engine, transmission, and suspension, to measure parameters like vibration, torque, and displacement. The reliable signal conditioning helps engineers to assess vehicle performance, identify potential issues, and optimize vehicle design for better efficiency and durability.

Related model recommendations

1. NI SCXI-1125: A high – density signal conditioning module, it has a larger number of input channels compared to the SCXI-1104C. Ideal for applications that demand extensive simultaneous measurements, it can be used in combination with the SCXI-1104Cto expand the overall measurement capacity of a system, especially in large – scale industrial monitoring projects.
2. NI SCXI-1122: Specialized for strain – gage and bridge measurements, this module provides tailored signal conditioning for these types of sensors. When paired with the SCXI-1104C, it enables a comprehensive measurement solution for applications that involve both general – purpose analog signals and strain – related measurements, such as in structural integrity testing.
3. NI SCXI-1300: A terminal block accessory for the SCXI platform, it simplifies the connection of external sensors and devices to the SCXI-1104C. By providing an organized and user – friendly wiring interface, it improves the usability and reliability of the measurement system, making it easier to set up and maintain.
4. NI SCXI-1000: The chassis that houses SCXI modules, including the SCXI-1104C. It supplies power, enables communication, and offers mechanical support for the modules. Different variants of the SCXI-1000can accommodate varying numbers of modules, allowing users to build customized measurement systems based on their specific requirements.
5. NI SCXI-1140: A high – accuracy differential input module, it offers enhanced precision in signal conditioning compared to the SCXI-1104C. Suitable for applications that demand extremely accurate measurements, such as in calibration laboratories, it can be used alongside the SCXI-1104Cto handle different levels of measurement accuracy needs within a single system.

Installation, commissioning and maintenance instructions

Installation preparation: Prior to installing the NI SCXI-1104C, ensure that the power to the SCXI chassis is turned off and that the chassis is properly grounded. Prepare the necessary tools, such as a screwdriver. Carefully align the module with the designated slot in the chassis and gently slide it in until it is firmly seated. Make sure all connections to the SCXI bus are secure. When connecting external sensors or devices to the SCXI-1104C, refer to the detailed wiring diagrams in the product manual to ensure correct signal routing and proper polarity.

Maintenance suggestions: For routine maintenance, regularly check the status indicators on the SCXI-1104C and the SCXI chassis to ensure normal operation. Keep the module and the chassis clean by periodically removing dust and debris, as these can affect the module’s performance over time. In case of measurement inaccuracies or abnormal behavior, first verify the connections and the configuration settings. If the problem persists, consult the troubleshooting guide provided in the product manual. When replacing any components, use only genuine NI parts to ensure compatibility and maintain the high – quality performance of the SCXI-1104C.

Service and guarantee commitment

We stand firmly behind the quality of the NI SCXI-1104C. The product is backed by a comprehensive warranty that covers any manufacturing defects. During the warranty period, if the module fails to function as specified, we will promptly repair or replace it at no cost. Our dedicated technical support team is readily available to assist customers with installation, commissioning, and any technical issues that may arise. We offer a wealth of online resources, including detailed user manuals, up – to – date software drivers, and practical application notes, to help users maximize the potential of the SCXI-1104C. Additionally, we regularly release software updates to enhance the module’s functionality and compatibility, ensuring that our customers’ measurement and automation systems stay at the cutting edge of technology.
