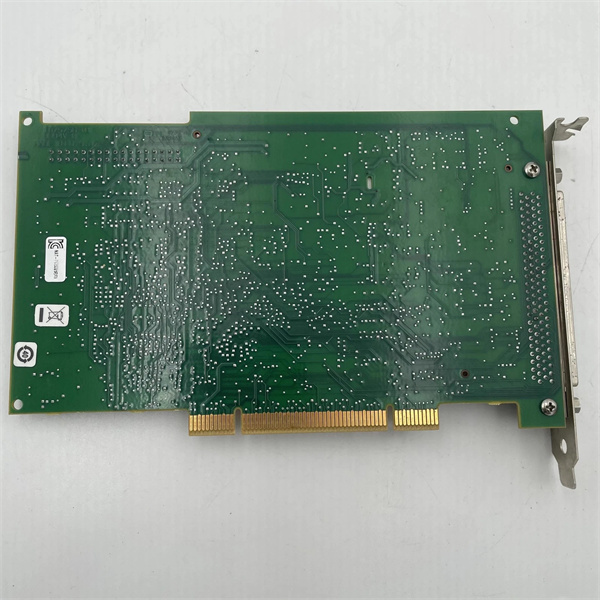

NI PCI-6030E

Product introduction

The NI PCI-6030E is a legacy high-performance multifunction DAQ card developed by National Instruments (NI), a pioneer in test, measurement, and automation technology. As a cornerstone of NI’s early 2000s DAQ lineup—renowned for reliability in legacy industrial systems—the NI PCI-6030E is engineered to deliver faster sampling rates and robust synchronization capabilities for retrofitted or long-running test setups, making it a critical component for users dependent on legacy hardware.

Designed for maintenance engineers, legacy system integrators, and researchers with established workflows, the NI PCI-6030E builds on the versatility of mid-range DAQ cards like the NI PCI-6014 but prioritizes speed: its 500 kS/s single-channel sampling rate captures faster transient signals (e.g., power electronics switching transients) that the NI PCI-6014 (200 kS/s) may miss. Unlike the NI PCI-6014, it includes an RTSI bus connector—enabling precise synchronization with other legacy NI instruments (e.g., NI PCI-5102 digitizers) in multi-device setups.

At its core, the NI PCI-6030E merges legacy compatibility with industrial durability. Powered by both Traditional NI-DAQ (for decades-old LabVIEW projects) and NI-DAQmx (for partial integration with modern tools), it bridges the gap between outdated systems and current workflows. Its hardware-based anti-alias filter and 16 kB analog input FIFO buffer ensure signal integrity in high-speed applications, while 100 MHz counters handle fast pulse-counting tasks (e.g., high-speed encoder tracking). Whether used to maintain a 20-year-old manufacturing test line, retrofit a legacy aerospace component tester, or extend the life of a research lab’s established data acquisition setup, the NI PCI-6030E delivers consistent performance that preserves investment in legacy infrastructure.

Core advantages and technical highlights

Faster Sampling for High-Speed Transient Capture

The NI PCI-6030E’s 500 kS/s single-channel sampling rate is 2.5x faster than the NI PCI-6014, making it ideal for capturing fast-changing signals in legacy systems. For example, in a retrofitted power electronics test bench, the NI PCI-6030E can sample the voltage spikes from a motor driver (50 ns rise time) at 500 kS/s—resolving details like overshoot and ringing that the NI PCI-6014 would smooth out. Its 16 kB analog input FIFO buffer also handles longer bursts of high-speed data (e.g., 32 ms of continuous sampling at 500 kS/s) without dropping frames, critical for time-sensitive applications like fault detection in industrial machinery.

RTSI Bus Synchronization for Multi-Device Legacy Setups

Unlike the NI PCI-6014, the NI PCI-6030E includes an RTSI bus connector—enabling sub-microsecond synchronization with other legacy NI PCI instruments. In a legacy automotive sensor test system, for instance, the NI PCI-6030E can synchronize with a NI PCI-5412 waveform generator and NI PCI-5102 digitizer via RTSI: the generator sends a test signal, the NI PCI-6030E samples the sensor’s response, and the digitizer captures the raw input—all aligned to a common clock. This synchronization is impossible with the NI PCI-6014’s software-only triggering, making the NI PCI-6030E indispensable for multi-instrument legacy workflows.

Robust Legacy Software Compatibility

The NI PCI-6030E is one of the few modern-supported DAQ cards with full Traditional NI-DAQ compatibility—a lifeline for users with LabVIEW projects dating back to the 2000s. For example, a defense contractor maintaining a missile component tester running LabVIEW 8.6 can use the NI PCI-6030E without rewriting thousands of lines of Traditional NI-DAQ code, whereas the NI PCI-6014 requires migrating to NI-DAQmx (a time-consuming process). It also supports Visual Basic 6.0 and legacy C++ compilers, ensuring compatibility with custom software written for Windows XP-era systems. While it works with NI-DAQmx for partial modern integration, its Traditional DAQ support is its most critical advantage for legacy setups.

Hardware Anti-Alias Filter for Signal Integrity

The NI PCI-6030E’s 8-pole Butterworth anti-alias filter (hardware-based, vs. the NI PCI-6014’s programmable software filter) provides steeper roll-off (60 dB/octave) to eliminate high-frequency noise. At 500 kS/s sampling, the filter’s 10 kHz cutoff ensures signals above 10 kHz (which would alias into the measurement band) are attenuated by >80 dB. In a legacy audio equipment test lab, this filter ensures that 20 kHz noise from power supplies doesn’t corrupt measurements of 5 kHz audio signals—a problem the NI PCI-6014’s softer 4-pole filter may not solve. The hardware implementation also reduces CPU load, a key benefit for older industrial PCs with limited processing power.

Typical application scenarios

Legacy Industrial Process Retrofitting

In manufacturing plants with decades-old control systems, the NI PCI-6030E is used to upgrade data acquisition without replacing entire setups. A steel mill, for example, might retrofit its 2005-era temperature monitoring system: the NI PCI-6030E replaces a failed proprietary DAQ card, sampling thermocouple data from 8 furnace zones at 250 kS/s (faster than the original 100 kS/s). Its RTSI synchronization with a legacy NI PCI-6221 DAQ card ensures the new card integrates with the existing PLC, while Traditional NI-DAQ compatibility lets the mill reuse its original LabVIEW 2010 interface. This retrofit extends the system’s life by 5+ years, avoiding a $100k+ replacement cost.

Aerospace Component Legacy Testing

Aerospace manufacturers rely on the NI PCI-6030E to maintain certification for legacy aircraft components (e.g., hydraulic valves). A test engineer might use the NI PCI-6030E in a 2010-era test rig to measure the valve’s pressure response: the card samples a pressure transducer at 500 kS/s, capturing the 10 ms pressure spike when the valve opens. Its RTSI bus synchronizes with a NI PCI-5412 waveform generator that sends a control signal to the valve, ensuring the measurement is time-aligned to the command. The NI PCI-6030E’s compatibility with Traditional NI-DAQ also preserves the test code written for LabVIEW 2009—critical for maintaining compliance with FAA certification documents that require unchanged test procedures.

Academic Legacy Lab Equipment

In university labs with budget constraints, the NI PCI-6030E extends the life of older experimental setups. A physics lab, for instance, uses the card to upgrade a 2008-era particle detector system: the NI PCI-6030E samples analog signals from 8 detectors at 300 kS/s, replacing a slower DAQ card that couldn’t capture fast particle pulses. Its 16 kB FIFO buffer logs data during detector bursts, while compatibility with LabVIEW 2012 lets students reuse existing data analysis code. The card’s low cost (compared to new DAQ cards) and durability make it ideal for high-use teaching labs, where equipment is shared across hundreds of students annually.

NI PCI-6030E

Related model recommendations

NI PCI-6014

A modern mid-range alternative to the NI PCI-6030E, with slower sampling (200 kS/s vs. 500 kS/s) but better modern software compatibility (full NI-DAQmx, .NET/Python support). It’s a replacement choice for users migrating from legacy systems to modern workflows, as it retains the NI PCI-6030E’s multifunction design but lacks RTSI synchronization.

NI PCI-6221

A high-precision upgrade to both the NI PCI-6030E and NI PCI-6014, offering 16-bit resolution (vs. 12-bit) and 250 kS/s sampling. It includes RTSI support (like the NI PCI-6030E) and modern NI-DAQmx integration, making it ideal for users needing higher accuracy (e.g., aerospace testing) while preserving multi-card synchronization.

NI USB-6008

A USB-powered DAQ module that complements the NI PCI-6030E for field service. Unlike the PCI-based NI PCI-6030E, it’s portable and works with laptops—perfect for troubleshooting legacy systems on-site. It shares similar analog/digital functionality (8 inputs, 2 outputs) and basic NI-DAQmx compatibility.

NI TB-2627

A legacy terminal block designed for the NI PCI-6030E, offering 68-pin SCSI-II connectivity with screw terminals for sensor wiring. It includes built-in signal conditioning for thermocouples (unlike the TB-2707), making it ideal for temperature measurement applications common in legacy industrial setups.

NI LabVIEW 2010

The recommended software for maximizing the NI PCI-6030E’s legacy capabilities. It fully supports Traditional NI-DAQ, letting users run decades-old LabVIEW projects without modification. For users needing partial modernization, LabVIEW 2010 can bridge the NI PCI-6030E to newer tools via data export to Excel or CSV.

NI PCI-5412

A legacy waveform generator that pairs with the NI PCI-6030E in closed-loop test systems. The NI PCI-5412 generates test signals (e.g., sensor stimuli), while the NI PCI-6030E samples the DUT’s response—synchronized via RTSI for time-aligned measurements, common in legacy automotive or aerospace testing.

Installation, commissioning and maintenance instructions

Installation preparation

Before installing the NI PCI-6030E, power off the legacy PC and confirm it has an empty PCI 2.1/2.2 slot (PCIe slots require an adapter). Wear an ESD wristband to prevent electrostatic damage. Insert the card firmly into the slot and secure it with the chassis screw. Connect sensors to the 68-pin SCSI-II terminal block (use NI TB-2627 for thermocouples or TB-2707 for general signals); for RTSI synchronization, connect a RTSI cable to other NI PCI instruments. Download Traditional NI-DAQ (v7.4+) or NI-DAQmx (v9.0+) from NI’s legacy driver archive (critical for older OS compatibility). Use NI Measurement & Automation Explorer (MAX) v4.6+ to detect the card, run a self-test, and calibrate analog channels (use the legacy calibration wizard for Traditional NI-DAQ). For multi-card setups, configure RTSI triggers in MAX to align sampling clocks.

Maintenance suggestions

To maintain the NI PCI-6030E’s performance, inspect the 68-pin and RTSI connectors quarterly for corrosion or bent pins—clean contacts with isopropyl alcohol and a soft brush, and straighten bent pins carefully (use needle-nose pliers). Avoid exposing the PC to temperatures above 55 °C (common in legacy industrial cabinets) by adding a cooling fan if needed. If analog measurements drift, recalibrate using MAX’s legacy calibration tool (recommended semi-annually for critical applications); use a precision voltage reference (e.g., NI 9172) for accuracy. For software issues, avoid updating the OS beyond Windows 10—newer OSes may break Traditional NI-DAQ compatibility. If the card fails, source replacement parts (e.g., capacitors) from NI’s legacy spare parts program, as third-party components may not match the card’s original specifications.

Service and guarantee commitment

National Instruments (NI) provides limited support for the NI PCI-6030E as a legacy product, including access to the legacy driver archive and knowledge base articles. While the standard warranty has expired for most units, NI offers a Legacy Service Plan that includes technical support for installation, calibration, and troubleshooting (via email and online chat). For out-of-warranty repairs, NI’s flat-rate legacy service restores the NI PCI-6030E to factory specifications—including replacing aged components (e.g., capacitors) and recalibrating analog circuits to meet original accuracy standards.

NI also maintains a user community forum dedicated to legacy DAQ cards, where engineers share tips for troubleshooting the NI PCI-6030E in legacy systems. Free access to application notes on retrofitting legacy setups and Traditional NI-DAQ programming ensures users can continue to leverage the NI PCI-6030E for years. This commitment reflects NI’s dedication to supporting customers with long-term infrastructure investments, even for end-of-life products.
