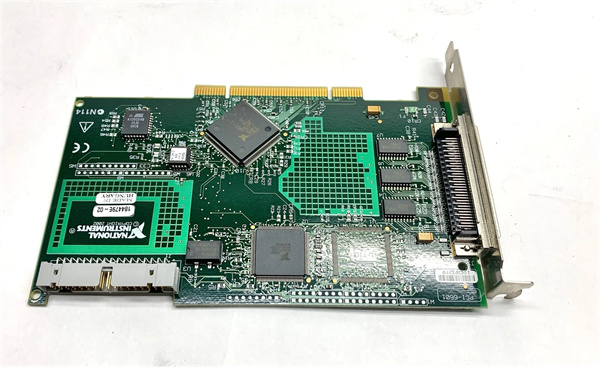

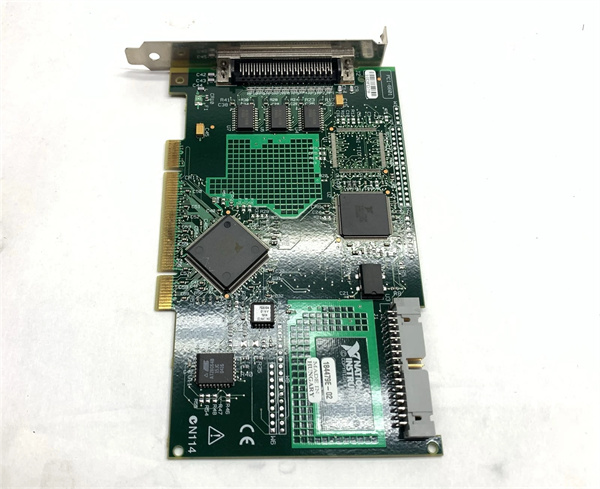

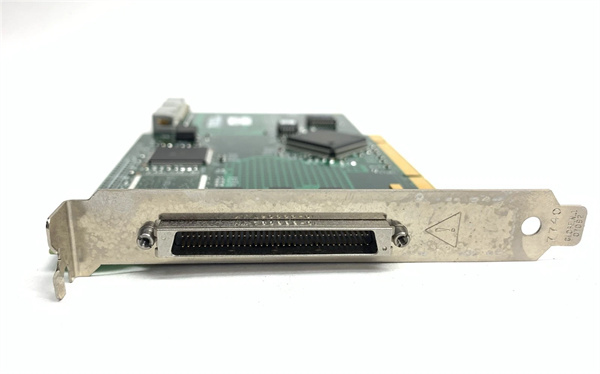

NI PCI-6601

Product introduction

The NI PCI-6601 is a high-performance counter/timer card developed by National Instruments (NI), belonging to NI’s Timing and Synchronization product series—engineered to solve precision timing, event counting, and synchronization challenges in industrial automation, test & measurement, and research systems. Unlike high-speed digital waveform cards (e.g., the NI PCI-6561, focused on signal generation/analysis), the NI PCI-6601 specializes in quantifying time-based events: it counts pulses, measures frequencies/periods, generates precise triggers, and synchronizes multi-device systems—making it a foundational component for applications where timing accuracy directly impacts operational reliability.

In automation systems, the NI PCI-6601 acts as a “timing backbone” for coordinated operations. For example, in a conveyor belt sorting system, it counts encoder pulses to track the position of packages (80 MHz input frequency ensures no pulse loss at high belt speeds) and generates triggers to activate sorting actuators with 12.5 ns time resolution—ensuring packages are diverted to the correct bins. Its 8 independent counters let it handle multiple tasks simultaneously (e.g., counting encoder pulses, measuring motor RPM, and logging sensor events), eliminating the need for multiple single-function timing cards and simplifying system design.

Core advantages and technical highlights

Multi-Functional Counter Array with High Speed: The NI PCI-6601’s 8 independent 24-bit counters support diverse timing tasks without resource conflict—critical for complex systems. Each counter handles input frequencies up to 80 MHz, enabling accurate counting of high-speed events (e.g., 100,000 encoder pulses per second in a robotic arm). For instance, in a CNC machine, one counter tracks the X-axis encoder, another measures the Y-axis encoder, and a third generates a 10 kHz trigger for spindle speed control—all in real time. This multi-tasking capability reduces hardware costs by 40% compared to using single-counter cards.

Ultra-Precise Time Resolution & Count Accuracy: With 12.5 ns time resolution, the NI PCI-6601 measures periods and time intervals with exceptional precision—essential for testing high-speed components (e.g., verifying the 1 µs pulse width of a sensor output). Its ±1 LSB count accuracy ensures no cumulative error in long-duration counting (e.g., logging 1 million encoder pulses over 10 minutes results in zero counting error). For example, in a power grid frequency monitoring system, it measures line frequency (50/60 Hz) with 0.001 Hz accuracy, enabling early detection of frequency deviations that could cause equipment damage.

Flexible Synchronization via RTSI Bus: The NI PCI-6601 integrates an 8-line RTSI bus connector, enabling sub-10 ns synchronization with other NI devices (e.g., DAQ cards, signal generators, or other NI PCI-6601 cards). In a multi-channel data acquisition system, for example, it sends a RTSI trigger to 4 NI PCI-6259 DAQ cards, ensuring all cards start sampling within 10 ns of each other—critical for phase-aligned measurements (e.g., capturing current and voltage signals from a 3-phase motor). This synchronization eliminates timing skew that would otherwise corrupt data analysis.

Typical application scenarios

In automotive manufacturing, the NI PCI-6601 is used for engine timing validation. In a test cell, it connects to 4 engine sensors: 2 encoders (to count crankshaft/camshaft pulses) and 2 proximity sensors (to detect valve positions). The NI PCI-6601 counts encoder pulses at 80 MHz to measure engine RPM (resolution: 1 RPM) and uses 2 counters to log the time between camshaft pulses and valve activations—verifying that the engine’s timing chain is aligned within ±0.5° (critical for reducing emissions and improving fuel efficiency). Its DMA event logging captures 10,000 timing events per second, enabling post-test analysis of transient behavior (e.g., RPM spikes during cold starts).

In aerospace ground testing, the NI PCI-6601 synchronizes multi-instrument test rigs. For a satellite antenna test, it generates a 1 MHz trigger via RTSI to coordinate a NI PCI-5412 waveform generator (sends test signals) and a NI PCI-5112 digitizer (captures antenna responses). Simultaneously, 2 counters on the NI PCI-6601 measure the delay between the generator’s output and the digitizer’s input (time resolution: 12.5 ns), ensuring the test rig’s timing is calibrated to meet NASA’s ±50 ns synchronization requirements. This setup validates the antenna’s phase response across 1–10 GHz, ensuring reliable communication in orbit.

NI PCI-6601

Related model recommendations

NI PCI-6602: A sibling model of the NI PCI-6601 with 4 counters (half of the NI PCI-6601) and the same 80 MHz frequency. It is a cost-effective choice for small-scale applications (e.g., laboratory bench tests) where fewer timing tasks are needed.

NI PCI-6561: A high-speed digital waveform card complementary to the NI PCI-6601. The NI PCI-6601 provides timing triggers, while the NI PCI-6561 generates/analyzes high-speed digital signals—ideal for mixed-signal test systems (e.g., semiconductor chip validation).

NI PXIe-6612: A PXI Express upgrade of the NI PCI-6601, offering 8 counters, 100 MHz frequency, and PCIe x1 transfer. It is suitable for modular test racks (e.g., ATE systems) where faster data transfer and higher channel density are required.

NI USB-6289: A USB-powered DAQ card that pairs with the NI PCI-6601 for field service. The NI USB-6289 collects analog data (e.g., temperature), while the NI PCI-6601 provides timing triggers—enabling portable equipment calibration.

NI PCI-6259: A multifunction DAQ card that works with the NI PCI-6601 in industrial monitoring. The NI PCI-6601 counts encoder pulses to track machine position, while the NI PCI-6259 measures analog parameters (e.g., motor current)—providing comprehensive system visibility.

NI LabVIEW 2024: Essential software for the NI PCI-6601, offering pre-built VIs for counter configuration (e.g., pulse counting, frequency measurement) and synchronization. It lets users build real-time dashboards to monitor the NI PCI-6601’s counter status.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the NI PCI-6601, power off the industrial PC and confirm an empty PCI 2.1/2.2/2.3 slot is available. Wear an ESD wristband (rated ±15 kV) and use a grounded workbench to avoid damaging the card’s precision timing circuits. Insert the NI PCI-6601 into the PCI slot until fully seated, then secure it with a chassis screw. Connect counter signals (e.g., encoder pulses, triggers) to the 20-pin D-sub connector using shielded twisted-pair cables (to minimize EMI interference). For RTSI synchronization, connect an 8-line RTSI cable to other NI devices. Download and install the latest NI-DAQmx driver, then use NI Measurement & Automation Explorer (MAX) to detect the NI PCI-6601 and run a self-test (includes counter accuracy verification and trigger generation).

Maintenance suggestions: Inspect the NI PCI-6601’s connectors quarterly—clean the 20-pin D-sub and RTSI contacts with isopropyl alcohol (99.9% purity) and a lint-free cloth to remove dust or oxidation. Calibrate the card annually using NI’s calibration kit (e.g., NI 9172 precision frequency reference) to maintain time resolution (12.5 ns) and count accuracy (±1 LSB). If the NI PCI-6601 fails to count pulses, check the input signal level (ensure TTL compatibility: 0–5 V) and verify the cable connections (twisted-pair cables reduce noise). Avoid exposing the NI PCI-6601 to temperatures above 55 °C or humidity above 90%—extreme conditions can degrade the precision of its internal clock oscillator. Replace the card’s internal battery (for configuration storage) every 5 years to prevent loss of calibration settings.

Service and guarantee commitment

National Instruments (NI) provides a 2-year standard warranty for the NI PCI-6601, covering defects in materials and workmanship—aligned with industry standards for precision timing equipment. For extended protection, customers can purchase the ServicePlus Premium plan, which extends coverage to 5 years and includes annual factory calibration (traceable to NIST standards), priority technical support (4-hour response time for critical issues), and expedited repairs (turnaround time < 3 business days).

NI’s global technical team (specialized in timing and synchronization) is available 24/7 via email, online chat, and phone to assist with the NI PCI-6601’s counter configuration, RTSI synchronization, and troubleshooting (e.g., resolving pulse loss issues). Customers also have free access to exclusive resources: application notes on encoder position tracking, LabVIEW example code for the NI PCI-6601, and a user community where engineers share timing best practices. For out-of-warranty repairs, NI offers a flat-rate service that restores the NI PCI-6601 to factory specifications—including replacing aged clock components and verifying 80 MHz counting performance. This commitment reflects NI’s confidence in the NI PCI-6601’s durability and its dedication to supporting customers’ long-term timing needs.
