NI NI-9234

Product Introduction

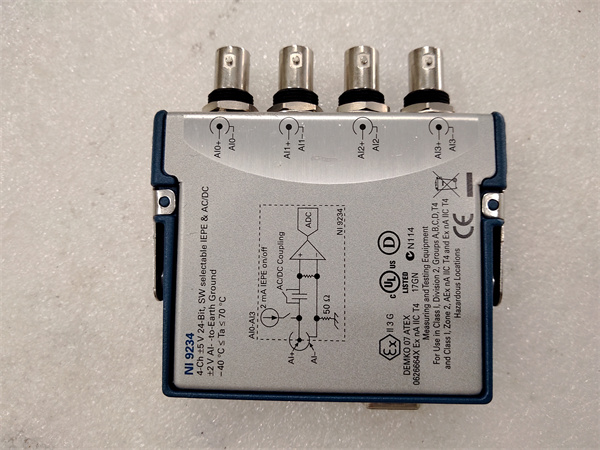

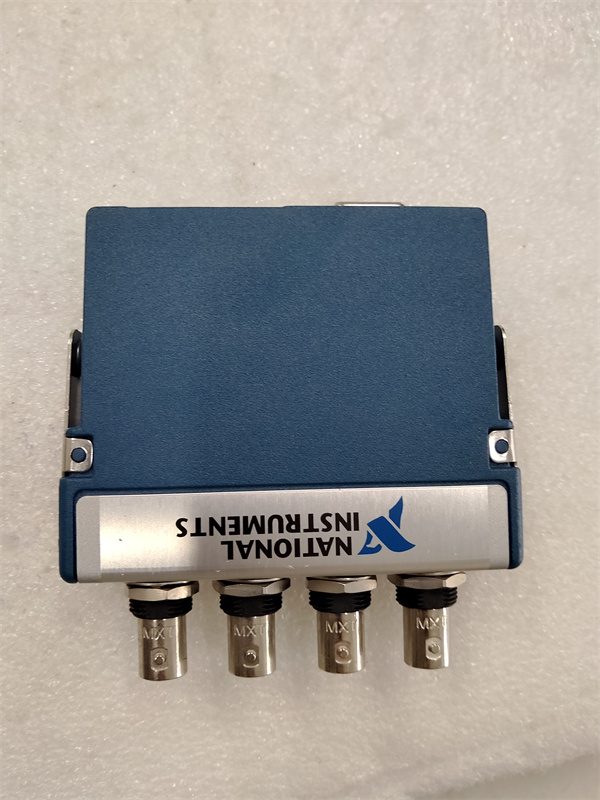

The NI NI-9234 is a high-precision, 4-channel sound and vibration input module designed for use in NI CompactDAQ or CompactRIO systems. It is capable of measuring signals from integrated electronic piezoelectric (IEPE) and non-IEPE sensors, such as accelerometers, tachometers, and proximity probes. The module features 24-bit resolution and a maximum sampling rate of 51.2 kS/s per channel, providing wide dynamic range and high-precision measurements.

Core Advantages and Technical Highlights

High Precision and Dynamic Range:

The NI NI-9234 offers 24-bit resolution and a wide dynamic range of 102 dB, ensuring high-precision measurements.

Versatile Signal Conditioning:

The module supports software-selectable AC/DC coupling and IEPE signal conditioning, making it suitable for a wide range of sensor types.

Built-in Filters:

Each channel features built-in anti-aliasing filters that automatically adjust to the user-specified sampling rate, ensuring accurate signal representation.

TEDS Compatibility:

The NI NI-9234 is compatible with smart TEDS sensors, providing enhanced sensor identification and calibration.

Robust Industrial Design:

With an operating temperature range of -40°C to 70°C and IP40 protection rating, the module is designed for use in harsh industrial environments.

NI NI-9234

Typical Application Scenarios

The NI NI-9234 is widely used in various industrial and research applications:

Industrial Automation: For precise vibration and noise measurements in manufacturing processes.

Research and Development: For high-precision data acquisition in laboratory settings.

Automotive Testing: For measuring noise, vibration, and harshness (NVH) in vehicle systems.

Aerospace: For vibration monitoring in aircraft systems.

Related Model Recommendations

NI 9237: A 4-channel, 24-bit thermocouple input module for temperature measurements.

NI 9219: A 4-channel, 24-bit analog input module with ±10 V range and 25 kS/s per channel.

NI USB-9162: A single-module USB carrier for the NI-9234, enabling direct connection to a computer via USB.
