Description
NI PCIE – 6612 Product Description
Detailed parameter table
Parameter name | Parameter value |
Product model | PCIE-6612 |
Manufacturer | National Instruments (NI) |
Product category | Multifunction counter/timer and digital I/O module |
Counter/timer channels | 4 32-bit counter/timer channels |
Digital I/O channels | 32 bidirectional digital I/O channels |
Maximum counting frequency | Up to 80 MHz |
Digital I/O signal levels | TTL/CMOS (Transistor – Transistor Logic/Complementary Metal – Oxide – Semiconductor) |
Isolation | None (non – isolated) |
Triggering modes | Edge – triggered, level – triggered, software – triggered, and programmable triggering |
PCI Express interface | x1 Gen 1 PCI Express interface |
Dimensions | 16.76 cm (W) x 10.16 cm (D) x 1.78 cm (H) |
Power consumption | 8 W typical |
Operating temperature | 0 °C – 55 °C |
Storage temperature | – 40 °C – 70 °C |

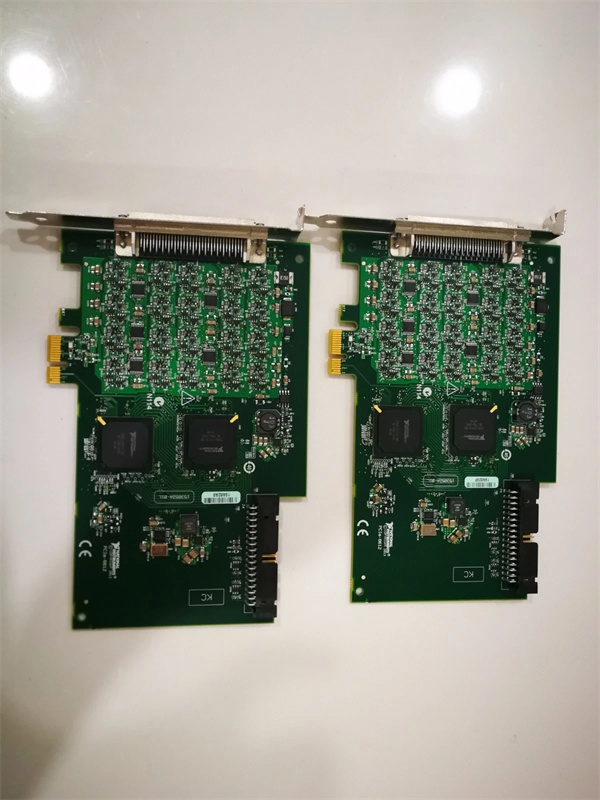

NI PCIE-6612
Product introduction
The NI PCIE-6612 is a high – performance multifunction counter/timer and digital I/O module from National Instruments (NI). Designed to meet the diverse needs of measurement and automation systems, it combines the functionality of precise counter/timer operations and reliable digital I/O capabilities in a single device.
With 4 32-bit counter/timer channels, the PCIE-6612 can perform a wide range of timing and counting tasks, such as measuring pulse widths, frequencies, and event counts. Its 32 bidirectional digital I/O channels provide extensive connectivity for interfacing with various digital devices and circuits. The module supports a maximum counting frequency of up to 80 MHz, ensuring accurate measurement of high – speed signals. Leveraging the x1 Gen 1 PCI Express interface, it enables fast and stable data transfer between the module and the host computer. Whether it’s for industrial process control, scientific research experiments, or educational applications, the NI PCIE-6612 offers a versatile and efficient solution for handling counter/timer and digital I/O requirements.
Core advantages and technical highlights
Integrated Multifunctionality: The NI PCIE-6612 stands out for its ability to combine counter/timer and digital I/O functions. This integration eliminates the need to purchase separate modules for these tasks, reducing system complexity and cost. In an automated manufacturing system, for example, it can simultaneously use the counter/timer channels to measure the speed of a conveyor belt by counting encoder pulses and the digital I/O channels to control the activation of sensors and actuators, streamlining the overall control process.
High – speed and Precise Counter/Timer Operations: The 4 32-bit counter/timer channels with a maximum counting frequency of 80 MHz allow for highly accurate measurement of time – related parameters. In a high – speed data acquisition application, it can precisely measure the frequency of a rapidly changing signal, which is crucial for applications like analyzing the performance of high – speed motors or evaluating the characteristics of high – frequency electronic circuits. The programmable triggering modes, including edge – triggered, level – triggered, and software – triggered options, give users the flexibility to start and stop counting or timing operations based on specific events or conditions, enhancing the precision and adaptability of the module.
Versatile Digital I/O Capabilities: The 32 bidirectional digital I/O channels of the PCIE-6612, supporting TTL/CMOS signal levels, can interface with a broad range of digital components. This makes it suitable for various digital control and communication tasks. In a laboratory experiment involving digital logic circuits, it can be used to send control signals to different circuit elements and receive feedback signals for analysis. The multiple triggering modes available for the digital I/O operations also enable users to synchronize digital events accurately, improving the overall performance of digital systems.
Efficient Data Transfer: The x1 Gen 1 PCI Express interface of the NI PCIE-6612 ensures fast and reliable data transfer between the module and the host computer. This high – speed data transfer is essential for applications that require real – time data acquisition and processing. In a real – time monitoring system, the module can quickly send the collected counter/timer data and digital I/O status information to the computer for immediate analysis and decision – making, reducing latency and improving the responsiveness of the system.
NI PCIE-6612
Typical application scenarios
In industrial automation, the NI PCIE-6612 is widely used for machine monitoring and control. In a CNC machining center, it can be employed to measure the rotational speed of the spindle using the counter/timer channels and control the operation of coolant pumps, tool changers, and other auxiliary equipment through the digital I/O channels. By precisely monitoring and controlling these parameters, it helps to optimize the machining process, improve product quality, and increase production efficiency.
In scientific research, especially in physics and engineering experiments, the PCIE-6612 serves as a valuable tool. In an experiment studying the behavior of high – speed particles, it can measure the time intervals between particle detections using the counter/timer channels and manage the operation of detectors and data acquisition devices with the digital I/O channels. Its high – speed and accurate measurement capabilities enable researchers to collect reliable data for in – depth analysis and discovery.
In educational institutions, the NI PCIE-6612 is an excellent teaching aid for courses related to electronics, control systems, and instrumentation. Students can use it to build hands – on projects, such as creating a simple automated control system or a digital frequency counter. Through practical experiments with this module, students can gain a deeper understanding of counter/timer and digital I/O concepts, as well as learn how to program and interface hardware with software, enhancing their practical skills and problem – solving abilities.
Related model recommendations
- NI PCIe – 6638: An advanced version of the PCIE-6612, offering more counter/timer channels (8 32-bit channels) and higher – speed performance with a maximum counting frequency of up to 100 MHz. It is suitable for applications that demand more extensive and precise timing and counting operations, such as high – end industrial automation systems or complex scientific research projects. When users need to handle a larger number of high – speed signals or more complex timing tasks, the PCIe – 6638provides enhanced capabilities.
- NI PXIe – 6674T: A PXI Express – based module with integrated time – stamping functionality, which is ideal for applications where accurate time synchronization is crucial, such as in distributed measurement systems or networked control systems. Compared to the PCIE-6612, it offers more advanced timing features and better integration within PXI Express – based systems, although it may have a different form factor and higher cost.
- NI PCI – 6602: A PCI – based alternative to the PCIE-6612, with similar counter/timer and digital I/O capabilities but using the older PCI bus interface. It can be a cost – effective option for legacy systems or applications where the PCI bus is still in use. However, it may have lower data transfer rates compared to the PCI Express – based PCIE-6612, so it’s more suitable for less data – intensive applications.
- NI USB – 6602: A USB – based multifunction counter/timer and digital I/O module, providing a more portable and flexible solution. It is convenient for applications that require easy setup and mobility, such as field testing or educational demonstrations. While it may have some limitations in terms of data transfer speed and power compared to the PCIE-6612, its USB connectivity makes it accessible for a wide range of users.
- NI PCIe – 6614: Similar to the PCIE-6612but with additional features, such as enhanced triggering capabilities and support for more complex digital I/O protocols. It is suitable for applications that need to handle more sophisticated digital communication and control tasks, like in advanced robotics or high – precision automation systems where precise coordination of multiple digital signals is required.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing the NI PCIE-6612, ensure that your computer is powered off and unplugged from the power source. Open the computer case and locate an available x1 Gen 1 PCI Express slot. Use appropriate electrostatic – discharge (ESD) protection measures, such as wearing an ESD wrist strap, to prevent damage to the module during handling. Carefully align the PCIE-6612 with the PCI Express slot and gently but firmly push it in until it is fully seated and the retention mechanism locks it in place. Close the computer case and reconnect the power source. Install the necessary device drivers and software provided by NI on your computer to enable communication with the module.
Maintenance suggestions: Regularly check the status of the PCIE-6612 through the device management software provided by NI. Monitor for any error messages or abnormal behavior, such as incorrect counter/timer readings or digital I/O malfunctions. Keep the computer and the module in a clean and dust – free environment, as dust accumulation can affect the heat dissipation and performance of the module. Periodically update the device drivers and firmware of the PCIE-6612 as new versions are released by NI to ensure compatibility with the latest operating systems and software, as well as to benefit from performance improvements and bug fixes. In case of any issues, refer to the troubleshooting guide in the product manual or contact NI’s technical support for assistance. When replacing any components related to the module, use only genuine NI parts to ensure the reliability and performance of the PCIE-6612.
Service and guarantee commitment
We are confident in the quality and reliability of the NI PCIE-6612. The product comes with a comprehensive warranty that covers any manufacturing defects. During the warranty period, if the PCIE-6612 fails to perform as specified, we will repair or replace it free of charge. Our dedicated technical support team is available around the clock to assist customers with installation, commissioning, and any technical issues that may arise. We offer a wide range of online resources, including detailed user manuals, software drivers, and application notes, to help users make the most of the PCIE-6612. Additionally, we are committed to continuous product improvement and regularly release firmware updates and technical enhancements to ensure that the PCIE-6612 remains a leading – edge solution in the multifunction counter/timer and digital I/O module market, providing our customers with reliable and high – performing solutions for their measurement and automation needs.
