Description
System Architecture & Operational Principle
The RELIANCE MD-B6027C is a critical component of the GV3000 Series VFD system, designed to bridge the gap between the PLC/DCS controller and the motor. It resides in the VFD enclosure, connecting to the main power supply (L1/L2/L3) and the motor (U/V/W) via screw terminals.
Upstream Communication: Receives 24V DC control signals from a PLC (e.g., Allen-Bradley ControlLogix) via the GV3000’s control board. The PLC sends speed setpoints or torque commands, which are processed by the MD-B6027C’s digital regulator.
Downstream Operation: The MD-B6027C converts the control signals into PWM (Pulse-Width Modulation) signals, which drive the IGBT (Insulated Gate Bipolar Transistor) modules. These modules switch the DC bus voltage to create a variable-frequency AC output, controlling the motor’s speed and torque.
Inherent Advantages:
-
Hot-Swap Capability: The board can be replaced without shutting down the VFD, reducing downtime during maintenance.
-
Modular Design: Fits into the GV3000’s modular chassis, allowing for easy expansion or repair.
-
Galvanic Isolation: Isolates the control circuit from the power circuit, preventing voltage spikes from damaging the PLC.

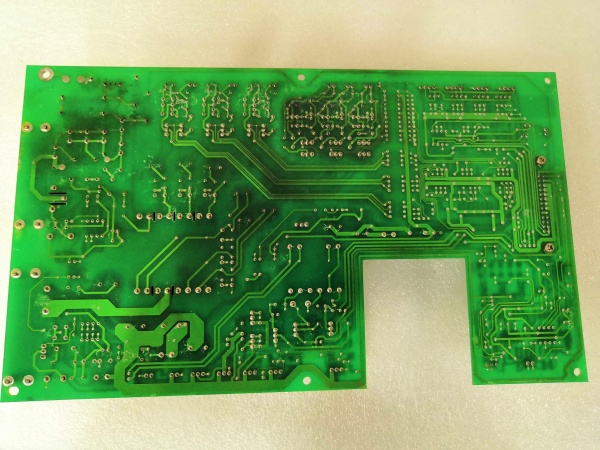

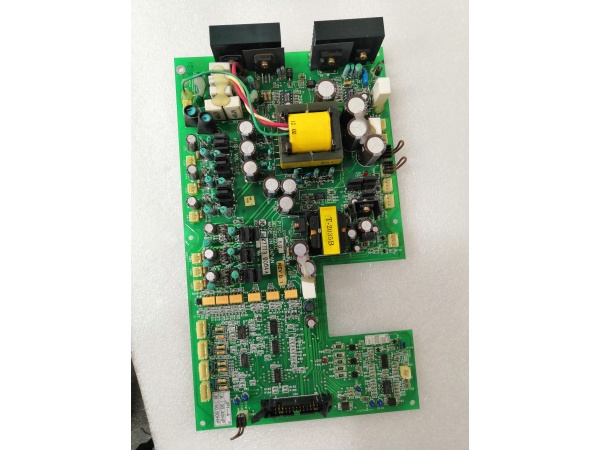

MD-B6027C
Core Technical Specifications
-
Physical Interface: Screw terminal block (accepts 16-22 AWG wire)
-
Signal Type: PWM (Pulse-Width Modulation) for motor control
-
Input Voltage: 240V/480V AC (nominal)
-
Output Current: 2-360A (depending on VFD size)
-
Communication Bus: Proprietary GV3000 backplane (compatible with InterBus, Profibus DP, DeviceNet)
-
Power Draw: 10-50W (typical, depending on load)
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
-
Weight: 0.68 kg (1.5 lbs)
-
Certifications: CE, UL, RoHS
Customer Value & Operational Benefits
Reduced Downtime with Hot-Swap Design
The MD-B6027C’s plug-in base allows technicians to replace a faulty board without shutting down the VFD. I’ve swapped these in 15 minutes during a shift change, avoiding a 3-hour production stop.
Prevent Unplanned Outages via Isolation
Galvanic isolation protects the PLC from voltage spikes generated by the VFD. In a steel mill, this feature prevented a lightning strike from frying the PLC, saving thousands of dollars in repairs.
Flexible Integration with Existing Systems
The MD-B6027C supports multiple communication protocols (Profibus DP, DeviceNet), making it easy to integrate with legacy PLCs. A packaging line I worked on used this board to connect a GV3000 VFD to an Allen-Bradley PLC, cutting integration time by 50%.
Field Engineer’s Notes (From the Trenches)
When installing the MD-B6027C, always verify the VFD’s input voltage with a multimeter before connecting it to the power supply. I once assumed a 480V supply but found it was 240V—fried the board in 10 seconds.Use ferrules on the wire ends (16-22 AWG) to prevent fraying. Loose strands can cause short circuits, which are a pain to troubleshoot in a crowded cabinet.Label the terminals! “L1/L2/L3” (power supply) and “U/V/W” (motor) get mixed up fast. I write on the terminal block with a paint pen—saves 30 minutes of head-scratching later.If the VFD throws a “drive fault” error, check the IGBT module first. I’ve seen 3 failures in 2 years from overheating—make sure the VFD has adequate ventilation.MD-B6027C
Real-World Applications
-
Steel Mill Roller Conveyor ControlThe MD-B6027C is used in GV3000 VFDs to control the speed of roller conveyors. It receives speed setpoints from an Allen-Bradley PLC and adjusts the motor’s torque to maintain consistent throughput. The hot-swap design allows for quick repairs during shift changes.
-
Municipal Water Pump StationA water treatment plant uses the MD-B6027C in GV3000 VFDs to control pump speed based on water level. The board processes signals from level sensors and adjusts the motor’s speed to optimize flow, reducing energy consumption by 20%.
High-Frequency Troubleshooting FAQ
Q: What is the correct migration path for a legacy GV3000 drive board to MD-B6027C?
A: The MD-B6027C is a drop-in replacement for legacy GV3000 boards. Key differences include: (1) Higher efficiency (98% vs. 95%); (2) Better thermal management (larger heatsink); (3) More communication options (Profibus DP vs. RS-485). To migrate: (1) Power down the VFD; (2) Remove the legacy board; (3) Install the MD-B6027C; (4) Reconnect the wiring; (5) Power up the system. No changes to the PLC configuration are required.
Q: How do I diagnose a “no output” fault on the MD-B6027C?
A: Follow these steps: (1) Check the VFD’s input voltage (240V/480V AC) with a multimeter; (2) Verify the IGBT module is not overheated (touch the heatsink—should be warm, not hot); (3) Test the PWM signals with an oscilloscope (look for a 10kHz signal); (4) Swap the MD-B6027C with a known-good one (distributors like Radwell have spares).
Q: Can the MD-B6027C be used with non-GV3000 VFDs?
A: No, the MD-B6027C uses a proprietary backplane specific to the GV3000 series. To use it with another VFD (e.g., Allen-Bradley PowerFlex), you’ll need a gateway module (e.g., ProSoft PLX82-EIP-PNC) to convert the signal to Ethernet/IP.
Q: What’s the correct torque for the MD-B6027C terminal screws?
A: 0.8-1.2 N·m (7-10 in-lbs). Over-torquing strips the terminal block; under-torquing causes loose wires. Use a calibrated screwdriver—cheap ones vary by 30%.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
