Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | SAACKE HMI 05E |
| Manufacturer | Saacke (Germany) |
| Product category | Human Machine Interface (HMI) Display |
| Display type | Touchscreen |
| Display size | 5.7 inches |
| Operating Voltage | 24 VDC |
| Power Consumption | Max. 20 W |
| Communication protocols | Ethernet, Modbus, CAN, PROFIBUS |
| Operating temperature | -20°C to +60°C |
| Protection class | IP65 |
| Dimensions | 18.5 cm x 13.5 cm x 4.4 cm |
| Weight | 1.5 kg |
| Certifications | UL, CE compliant |

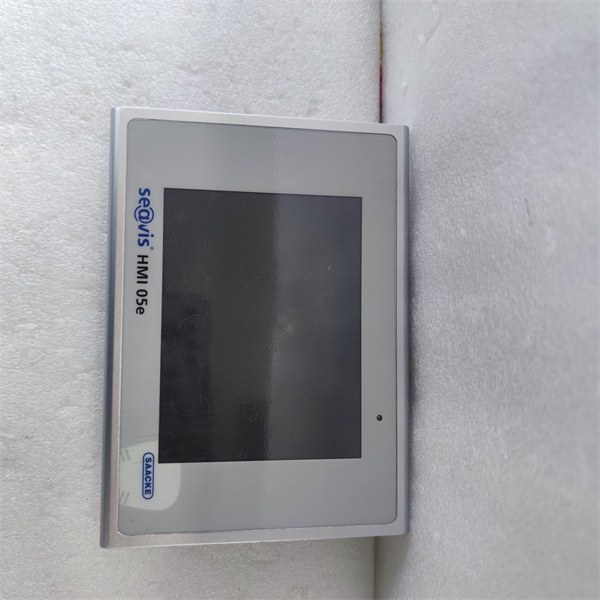

SAACKE HMI 05E
Product Introduction
The SAACKE HMI 05E is a high-performance Human Machine Interface (HMI) display designed for industrial control systems. It is part of Saacke’s se@vis series, known for its reliability and advanced technology in combustion control and monitoring.
Core Advantages and Technical Highlights
High Resolution Display: The HMI 05E features a 5.7-inch touchscreen display, providing clear and detailed visualization of process data.
Robust Input/Output Capacity: The module offers high input/output capacity, allowing seamless integration with various industrial systems and equipment.
User-Friendly Interface: The HMI 05E features an intuitive menu-driven interface, providing real-time process data and enabling quick and efficient operation.
Remote Monitoring and Control: The module supports remote monitoring and control via Ethernet, Modbus, CAN, and PROFIBUS protocols, facilitating integration with SCADA systems.
Advanced Safety Features: The HMI 05E includes an integrated operating and initial value fault message system, reducing service costs and ensuring quick troubleshooting.

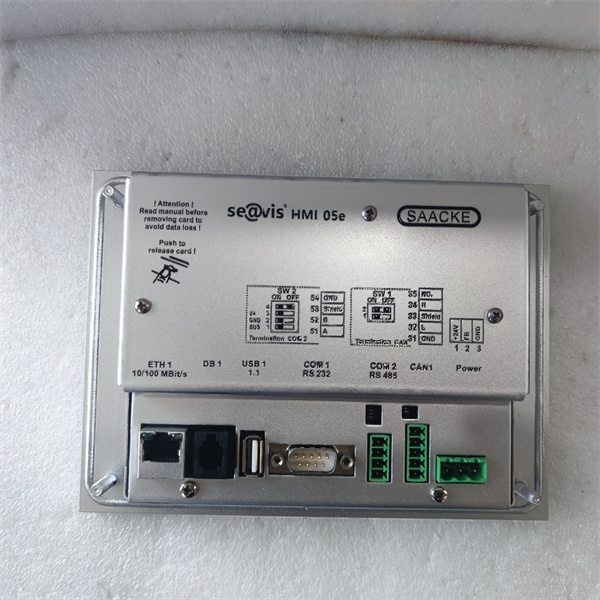

SAACKE HMI 05E
Typical Application Scenarios
The SAACKE HMI 05E is widely used in various industrial sectors, including:
Power Industry: Monitoring and controlling combustion processes in power plants.
Petrochemical Sector: Managing and optimizing processes in chemical mixing, refining, and storage.
General Automation: Controlling manufacturing processes, assembly lines, and robotic systems.
Related Model Recommendations
SAACKE FSC-01 V3.00: A related combustion controller with advanced control algorithms and safety features.
SAACKE DMP10.24: Complements the HMI 05E by providing additional monitoring capabilities for industrial processes.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the SAACKE HMI 05E, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +60°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the SAACKE HMI 05E, perform regular inspections of the unit and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
