1. Product Description TheWOODWARD 5453-203 is a Micronet Control Module designed for industrial automation, offering precise control over motor speeds and process parameters. As part of Woodward’s Micronet series, the 5453-203 integrates advanced signal processing and communication capabilities to ensure reliable operation in challenging environments. Key features include support for Modbus RTU and Ethernet protocols, 16 input channels, and 8 output channels, making it suitable for applications such as turbine control, power generation, and machinery automation.
2. Product Parameters
Parameter
Specification
Model Number
5453-203
Type
Micronet Control Module
Input Voltage
220V AC
Output Frequency
50 Hz
Communication Interfaces
RS-485, Ethernet (Modbus RTU/TCP)
Input/Output Channels
16 inputs / 8 outputs
Operating Temperature
-20°C to +70°C
Protection Rating
IP65 (dust and water resistance)
Weight
2.5 kg
Certifications
CE, UL

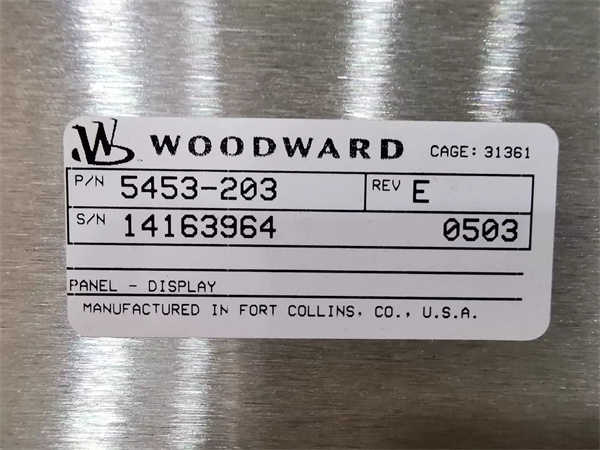

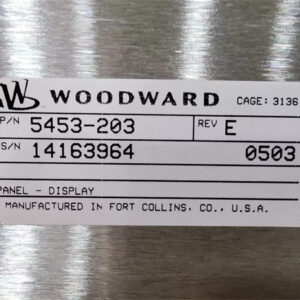

WOODWARD 5453-203
3. Advantages and Features
Precision Control: PID algorithm ensures accurate speed regulation for motors and engines.
Flexible Communication: Supports both RS-485 and Ethernet for seamless integration with DCS/PLC systems.
Rugged Design: IP65 rating protects against dust and water, ideal for harsh industrial settings.
Energy Efficiency: Low power consumption reduces operational costs.
4. Application Areas and Case Studies
Power Generation: Controls steam turbine speeds in power plants for stable energy output.
Manufacturing: Optimizes conveyor systems in automotive assembly lines for precise motion control.
Oil and Gas: Manages pump speeds in refineries to enhance process efficiency.
Case Study: A European manufacturing plant reduced energy costs by 15% using the 5453-203 to dynamically adjust motor speeds based on production demands.
5. Competitor Comparison Compared to similar modules, the 5453-203 offers a broader operating temperature range (-20°C to +70°C vs. typical -10°C to +60°C) and dual communication interfaces, enabling versatile system integration. Its IP65 rating exceeds many alternatives, ensuring durability in wet or dusty environments.

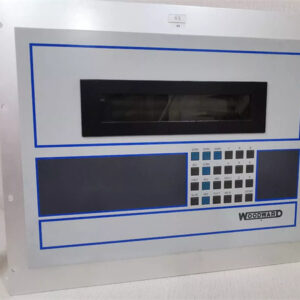

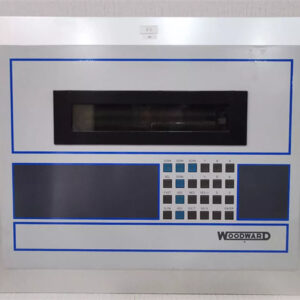

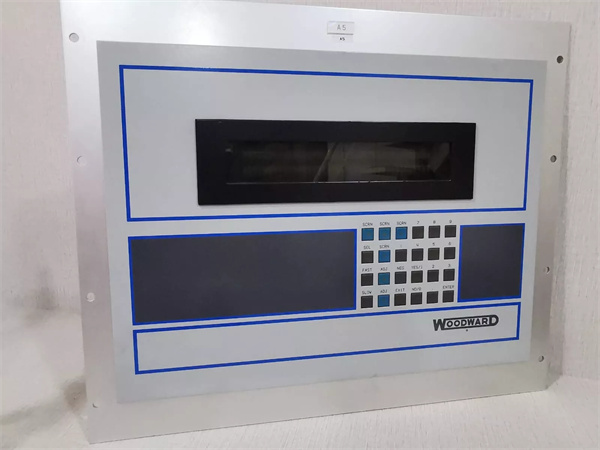

WOODWARD 5453-203
6. Selection Recommendations
Voltage Requirements: Ensure compatibility with 220V AC power supply.
Environmental Demands: Choose IP65-rated modules for outdoor or high-moisture applications.
Channel Needs: Verify input/output channel count matches system requirements.
7. Precautions
Installation: Follow grounding guidelines to prevent EMI interference.
Power Management: Avoid exceeding current ratings to prevent overheating.
Software Updates: Regularly update firmware for optimal performance and security.
Discontinuation Note: The 5453-203 is discontinued; consider upgrading to Woodward’s newer Micronet Plus series for long-term support.
