Description
System Architecture & Operational Principle
The LAM 666-045257-006 is a field-mounted temperature sensor overhaul kit. In the Purdue Model, it sits at Level 1, interfacing directly with the process. It receives no commands; it passively measures temperature. Its output is a 4-20mA signal representing the temperature, sent to a higher-level controller (like a PLC or DCS at Level 2). The controller compares this to a setpoint and adjusts actuators (e.g., heaters, coolers). The kit’s advantage is its integration into the sensor assembly, providing a calibrated, high-accuracy measurement point. The connection to the controller is typically a shielded twisted pair, providing noise immunity. The galvanic isolation built into the sensor electronics prevents ground loops common in semiconductor fabs with mixed-voltage equipment. This direct, analog feedback loop is simple and reliable for closed-loop temperature control in vacuum chambers.
Core Technical Specifications
-
Detection Range: -40°C to +125°C
-
Accuracy: ±0.5°C
-
Output Signal: 4-20mA analog
-
Supply Voltage: 24V DC (loop-powered)
-
Process Connection: Varies (typically 1/4″ NPT or M12)
-
Electrical Connection: Terminal block or pre-wired cable
-
Ingress Protection: IP67
-
Sensor Type: PT100 RTD element
-
Material Compatibility: Stainless steel probe
-
Response Time: < 5 seconds (typical)
-
Operating Pressure: Up to 100 psi
-
Weight: ~0.5 kg (1.1 lbs)

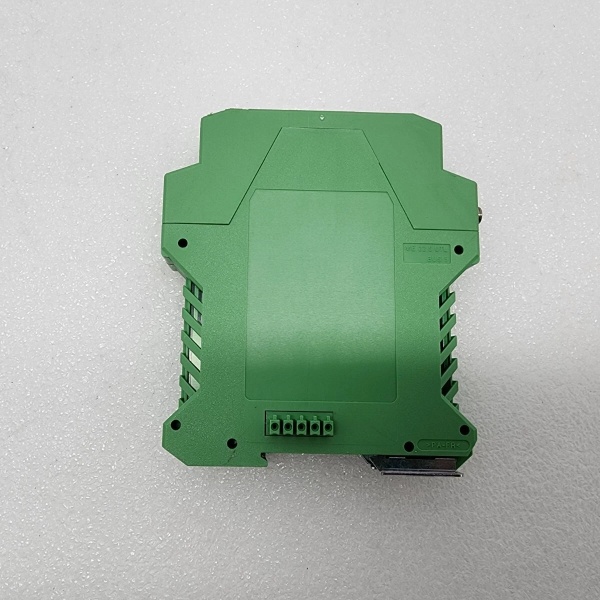

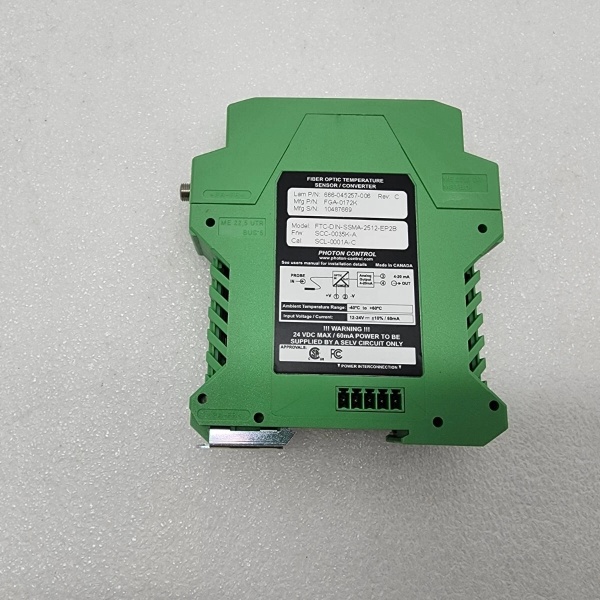

LAM 666-045257-006
Customer Value & Operational Benefits
Improved Process Stability
The ±0.5°C accuracy ensures tight temperature control in processes like plasma etching. This reduces wafer-to-wafer variation, improving yield by up to 2% in critical etch steps.
Reduced Maintenance Downtime
The overhaul kit replaces aging components before they fail. A technician can swap the kit in under 30 minutes, avoiding a full chamber teardown. This cuts unplanned downtime from hours to minutes.
Simplified Root Cause Analysis
The 4-20mA signal can be logged with a simple multimeter or data acquisition card. When a process drifts, you can quickly see if the sensor reading is the cause, speeding up troubleshooting.
Field Engineer’s Notes (From the Trenches)
When swapping a LAM 666-045257-006 kit, always check the thermowell. The original sensor might have been in service for years, and the well can corrode or foul. A stuck sensor is a nightmare to remove and can damage the well. Use a strap wrench and apply steady force. Also, verify the loop power supply at the controller end is truly 24V DC. I’ve seen techs assume it’s correct, only to find a 22V supply causing a 15% drop in signal, leading to incorrect readings. Finally, use heat-conducting paste on the sensor tip before inserting it into the thermowell. It makes a noticeable difference in response time and accuracy, especially in rapid thermal cycling applications.
Real-World Applications
-
Semiconductor Etch Chamber Temperature Control
-
The overhaul kit replaces the sensor in the chamber wall.
-
It measures the silicon wafer’s temperature during plasma etching.
-
The 4-20mA signal feeds the chamber controller, which adjusts RF power and gas flows to maintain the setpoint, critical for etch rate uniformity.
-
-
Chemical Vapor Deposition (CVD) Reactor Thermal Management
-
The kit is installed in the gas line or reaction chamber.
-
It monitors precursor gas temperature to prevent premature reaction.
-
The controller uses this data to modulate heater bands, ensuring deposition occurs only on the target substrate.

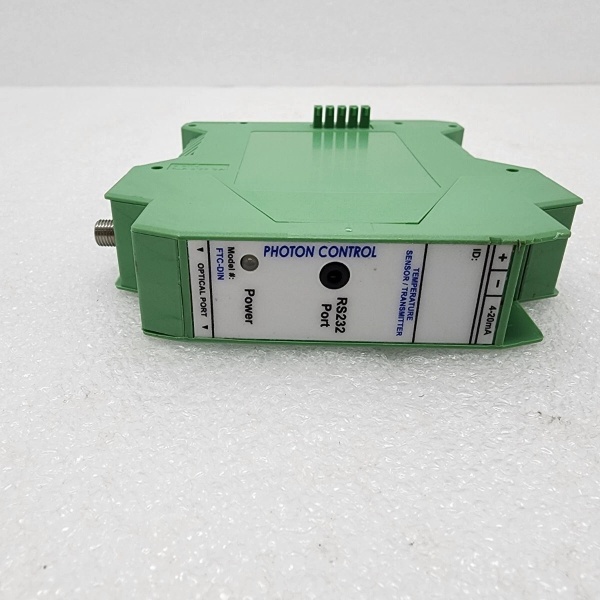

LAM 666-045257-006
-
High-Frequency Troubleshooting FAQ
Q: Is the LAM 666-045257-006 compatible with non-LAM equipment?
A: The sensor element itself is a standard PT100 RTD. However, the mounting and signal conditioning are specific to LAM tools. For non-LAM use, you would need to adapt the mechanical interface and potentially the output signal (e.g., to a different scale). It’s not a plug-and-play replacement for generic sensors.
Q: What does a fluctuating 4-20mA signal from the LAM 666-045257-006 indicate?
A: This usually points to one of three issues: 1) EMI pickup on the signal cable, often from a nearby VFD or RF generator. Use shielded cable. 2) Loop power instability; check the 24V supply with a multimeter. 3) Partial sensor failure; the RTD element may be developing an open circuit. Measure the resistance across the sensor leads; it should change smoothly with temperature.
Q: How do I verify the calibration of a newly installed LAM 666-045257-006 kit?
A: The best method is a comparison against a known-good reference thermometer. Place both in a controlled environment (like an environmental chamber) and compare readings across the -40°C to 125°C range. A simpler field check is to place the sensor in ice water (0°C) and measure the output current; it should be 4mA + (0.16mA/°C * 0°C) = 4mA, but the actual scale is 4-20mA for the full range, so 0°C would be around 7.2mA for a -40 to 125°C span. Check the specific scaling in the equipment manual.
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
