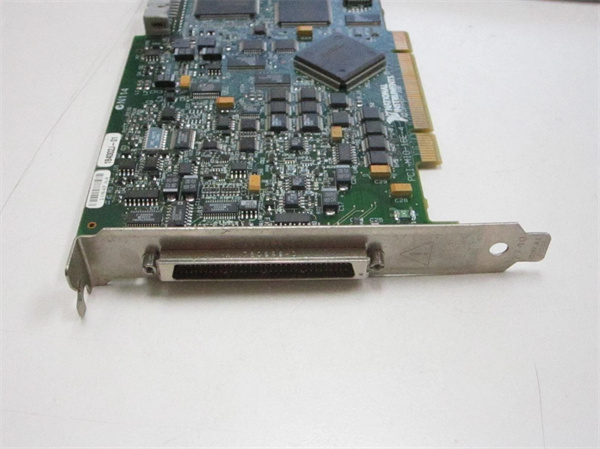

NI PCI-6040

Product Introduction

The NI PCI-6040 is a versatile multifunctional DAQ card from National Instruments (NI), a key model in the company’s trusted E Series—renowned for delivering balanced performance, reliability, and affordability for small-to-mid-scale industrial automation and testing tasks. Unlike its sibling NI PCI-6036 (with 2 analog outputs), the NI PCI-6040 doubles the analog output channels to 4, making it ideal for applications requiring simultaneous control of multiple actuators or signal generation.

At its core, the NI PCI-6040 integrates high-precision analog I/O, flexible digital I/O, and robust counters into a single PCI card, eliminating the need for multiple discrete modules and simplifying system design. When paired with NI’s intuitive NI-DAQmx driver, the NI PCI-6040 seamlessly works with software tools like LabVIEW, enabling users—even those with limited programming experience—to build custom monitoring or control systems. This combination of expanded analog output capability, 16-bit precision, and industrial-grade durability makes the NI PCI-6040 a top choice for teams needing to control multiple devices while capturing accurate sensor data.

Core Advantages and Technical Highlights

Expanded 4-Channel Analog Output: The NI PCI-6040’s standout feature is its 4 analog output channels—double the 2 channels of the NI PCI-6036—enabling simultaneous control of multiple devices without additional hardware. For example, a small-scale automated assembly line can use the NI PCI-6040 to adjust the position of 2 conveyor belts (via 2 analog outputs), control a robotic gripper’s force (3rd output), and regulate a heating element’s temperature (4th output)—all with one card. This eliminates the need to add a separate analog output module, cutting hardware costs by up to 30% and saving PCI slot space.

16-Bit Precision for Accurate I/O: With 16-bit resolution for both analog input and output, the NI PCI-6040 ensures precise signal capture and control. On the input side, it detects subtle variations (down to ~1.2 μV in the ±0.05 V range) for tasks like measuring strain gauge data; on the output side, it delivers voltage accuracy within ±0.02% of full scale, critical for applications like calibrating low-power sensors or controlling precision actuators. A laboratory testing small electronic components, for instance, uses the NI PCI-6040 to generate 4 precise voltage signals (e.g., 0.5 V, 2 V, 5 V, 8 V) for circuit testing, ensuring consistent and reliable results.

Software-Selectable Voltage Ranges: The NI PCI-6040 offers four software-configurable analog input ranges (±0.05 V to ±10 V), adapting to diverse signal sources without external attenuators or amplifiers. Users can switch from measuring a 50 mV pressure sensor signal (±0.05 V range) to a 10 V motor control signal (±10 V range) via software—no hardware changes required. This flexibility reduces setup time by 50% compared to DAQ cards with fixed ranges, especially in environments where testing multiple signal types is common.

Software-Controlled Self-Calibration: Unlike budget DAQ cards that require manual potentiometer tweaks, the NI PCI-6040 features on-board self-calibration controlled via software. This maintains measurement and output accuracy over time and temperature fluctuations, essential for long-term applications like environmental monitoring or continuous production line control. Users can run calibration in minutes through NI-DAQmx, eliminating the need for specialized tools and ensuring the NI PCI-6040 stays accurate without disrupting operations.

Typical Application Scenarios

The NI PCI-6040 excels in applications needing multiple simultaneous analog outputs alongside accurate data capture. In small-scale industrial automation, it powers control systems for packaging machines: the NI PCI-6040 captures temperature data from 4 oven sensors (analog input) while using 4 analog outputs to adjust the speed of 2 packaging rollers, control a sealing mechanism’s pressure, and regulate oven temperature. This integrated control ensures consistent packaging quality and reduces the risk of product defects.

In academic research, the NI PCI-6040 is a valuable tool in mechatronics labs: students use the card to build small robotic systems, where 2 analog outputs control the robot’s left and right motor speeds, 1 output adjusts a gripper’s position, and 1 output simulates a sensor signal for testing. The NI PCI-6040’s compatibility with LabVIEW lets students visualize both input data (e.g., from a distance sensor) and output control signals, making it easy to learn feedback control principles.

In medical device testing, the NI PCI-6040 supports quality control for portable diagnostic tools: technicians use the card to generate 4 different test voltages (analog output) to simulate patient signals (e.g., heart rate, blood pressure) while measuring the device’s response (analog input). The NI PCI-6040’s 16-bit precision ensures the test signals meet medical standards, while its 4 output channels let technicians validate multiple device functions in a single test, speeding up quality checks.

NI PCI-6040

Related Model Recommendations

NI PCI-6036: A sibling E Series model with 2 analog outputs (half the NI PCI-6040), serving as a cost-saving alternative for applications needing fewer control channels (e.g., simple sensor monitoring with basic actuator control).

NI PCI-6037: An upgraded E Series DAQ card with 500 kS/s analog input sampling rate (faster than the NI PCI-6040’s 200 kS/s) and 16 analog inputs, ideal for users needing faster data capture alongside multiple outputs.

NI PCI-6221: A newer M Series card with 16-bit resolution, 250 kS/s sampling rate, and 2 analog outputs, replacing the NI PCI-6040 for users upgrading to modern hardware with improved noise performance (suited for low-noise lab environments).

NI cDAQ-9263: A CompactDAQ 4-channel analog output module, a portable alternative to the NI PCI-6040 for field testing (e.g., on-site equipment calibration) where PCI-based systems are impractical.

NI PCI-6040E: A legacy E Series variant of the NI PCI-6040 with identical features, compatible with older industrial PCs and serving as a direct replacement for aging NI PCI-6040 units.

NI PCIe-6323: A PCI Express (PCIe) upgrade to the NI PCI-6040, offering 4 analog outputs, faster data transfer (via PCIe x1), and 16 analog inputs for users transitioning from PCI to PCIe motherboards.

NI PCI-6031E: An E Series card with 8 analog inputs (half the NI PCI-6040) and 2 analog outputs, designed for applications needing fewer input channels but basic multi-output control.

NI PCI-6052E: A high-channel E Series model with 16 analog inputs and 4 analog outputs (matching the NI PCI-6040), plus 24 digital I/O lines, ideal for users needing expanded digital control alongside multiple analog outputs.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Before installing the NI PCI-6040, confirm the host PC has an available 32-bit PCI slot (compatible with 3.3 V or 5 V) and meets system requirements (Windows 7/10/11, 4 GB RAM, 200 MB free disk space for NI-DAQmx). Power off the PC and disconnect all power sources to prevent electrical damage. Use an anti-static wristband when handling the NI PCI-6040—its internal components are sensitive to electrostatic discharge. Align the card’s edge connector with the PCI slot, press firmly until the bracket seats against the PC case, and secure with a screw to prevent movement. After installation, power on the PC, install the latest NI-DAQmx driver from NI’s website, and run the hardware detection tool in NI Measurement & Automation Explorer (MAX) to verify the NI PCI-6040 is recognized and functioning.

Maintenance suggestions: To maintain optimal performance of the NI PCI-6040, clean its PCI connector every 3 months with low-pressure compressed air to remove dust (a common cause of intermittent connectivity). Run software-controlled self-calibration quarterly—or after significant temperature changes—to preserve accuracy. If the NI PCI-6040 fails to communicate, check for loose cables, confirm the NI-DAQmx driver is up to date, and test the card in a different PCI slot. For hardware issues (e.g., unresponsive analog outputs), contact NI technical support—do not open the card, as this voids the warranty. Replace damaged analog output cables promptly to avoid signal distortion and ensure reliable control of connected devices.

Service and Guarantee Commitment

The NI PCI-6040 comes with a standard 1-year manufacturer’s warranty, covering defects in materials and workmanship. NI guarantees the NI PCI-6040 will meet all published technical specifications during the warranty period, with free repair or replacement of defective units. Customers can extend coverage to 5 years via NI’s Extended Service Program (ESP), which includes annual professional calibration, priority technical support, and expedited repair (48–72 hour turnaround for industrial applications).

NI provides comprehensive support for the NI PCI-6040 through global resources: online application notes, video tutorials for multi-output control setup, a community forum, and direct phone/email access to DAQ experts. For custom integration needs—such as building a LabVIEW-based multi-actuator control system—NI offers professional services, including system design and software development. This commitment ensures users maximize the NI PCI-6040’s value, minimize downtime, and protect their investment in reliable DAQ technology for years.
