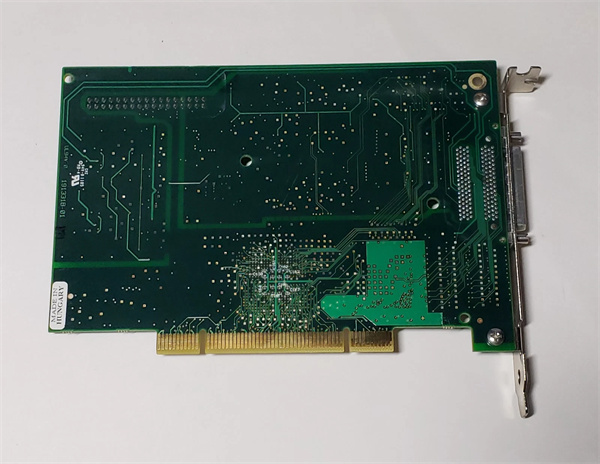

NI PCI-6220

Product introduction

The National Instruments PCI-6220 is a high-performance multi-function PCI DAQ device engineered to meet the diverse needs of data acquisition in a wide array of industries. As part of NI’s comprehensive DAQ product portfolio, the PCI-6220 offers a blend of analog input capabilities, digital I/O functionality, and precise counter/timer operations, making it a go-to choice for applications that demand reliable and accurate data handling.

At its heart, the PCI-6220 excels in converting real-world analog signals, such as those from temperature sensors, pressure transducers, or strain gauges, into digital data suitable for processing by a host computer. Its 16-bit analog input resolution ensures high precision in measurements, while the software-selectable input ranges accommodate a broad spectrum of sensor output levels. Additionally, the 24 digital I/O channels enable seamless integration with digital devices, whether it’s controlling relays, monitoring digital status signals, or interfacing with logic circuits.

The inclusion of two 32-bit counters/timers further expands the PCI-6220’s versatility. These can be used for tasks like counting events, generating precise pulses, or measuring time intervals, which are crucial in applications such as motor control, frequency measurement, and data logging with strict timing requirements.

Core advantages and technical highlights

High-Resolution Analog Input: With a 16-bit resolution on its 16 analog input channels, the PCI-6220 offers enhanced measurement accuracy. This level of precision is beneficial in applications where even the slightest changes in analog signals need to be detected, such as in scientific research for measuring minute physical quantities or in quality control processes where tight tolerances are required. For example, in a chemical laboratory, it can accurately measure the subtle changes in voltage from a pH sensor during a chemical reaction, providing more detailed data for analysis.

Fast Sampling Rates: The ability to sample analog inputs at up to 250 kS/s (single-channel) allows for the capture of rapidly changing signals. This is invaluable in applications like vibration analysis, where high-frequency vibrations need to be accurately measured. In a manufacturing plant, the PCI-6220 can sample vibration signals from rotating machinery at high speeds, enabling early detection of mechanical issues by analyzing the frequency components of the vibrations.

Flexible Digital I/O: The 24 bidirectional digital I/O channels provide great flexibility for interfacing with digital systems. In an industrial automation setting, these channels can be used to control the operation of multiple solenoid valves, sensors, and actuators. For instance, in a packaging line, the PCI-6220 can use its digital outputs to control the opening and closing of valves that dispense products into packages, while its digital inputs monitor the status of sensors that detect the presence of packages on the conveyor belt.

Precise Counters/Timers: The two 32-bit counters/timers offer exceptional precision for timing-critical applications. In a robotics application, these counters can be used to precisely control the movement of robotic arms by accurately counting the encoder pulses. This ensures that the robotic arm moves to the exact position required, enhancing the accuracy and repeatability of tasks such as pick-and-place operations in a factory.

Compatibility with Signal Conditioning Modules: The PCI-6220 can be easily integrated with NI’s SCC or SCXI signal conditioning modules. This allows for the addition of specialized sensor measurement capabilities, such as measuring high-voltage signals or conditioning signals from sensors that require amplification or filtering. In a power distribution monitoring system, the PCI-6220, when paired with an appropriate SCXI module, can safely measure high-voltage signals from power lines, ensuring the safe and accurate monitoring of electrical parameters.

Typical application scenarios

Laboratory Research and Development: In research laboratories, the PCI-6220 is used for a wide range of experiments. It can be connected to various sensors to measure physical properties like temperature, pressure, and humidity during material testing. For example, in a materials science lab, it can measure the strain and stress on test specimens under different environmental conditions, providing valuable data for developing new materials.

Industrial Automation and Control: In manufacturing plants, the PCI-6220 plays a crucial role in automation and control systems. It can monitor and control production processes, such as regulating the speed of motors, controlling the flow of fluids in pipelines, and detecting faults in equipment. In an automotive assembly line, the PCI-6220 can be used to control the movement of robotic welders, ensuring precise and consistent welding operations.

Test and Measurement in Electronics: In the electronics industry, the PCI-6220 is used for testing and validating electronic components and devices. It can generate and measure electrical signals to test the performance of integrated circuits, printed circuit boards, and other electronic assemblies. For example, in a semiconductor testing facility, the PCI-6220 can be used to apply test signals to a semiconductor device and measure its output response, helping to determine the device’s functionality and quality.

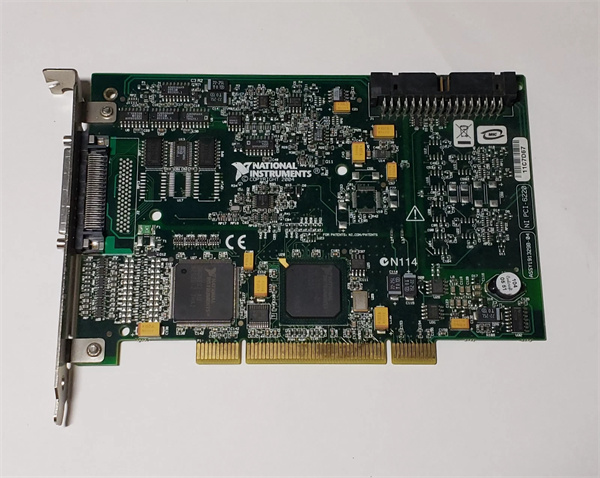

NI PCI-6220

Related model recommendations

NI SCC Modules: These signal conditioning modules can be directly connected to the PCI-6220. They offer a variety of functions such as amplification, filtering, and isolation for different types of sensors. For example, an SCC module with built-in amplification can be used to boost the weak signals from a thermocouple before they are fed into the PCI-6220, improving the accuracy of temperature measurements.

NI SCXI-1000 Chassis and Modules: The SCXI-1000 chassis, when paired with compatible modules, can expand the capabilities of the PCI-6220. The chassis provides a platform for multiple SCXI modules, which can handle a wide range of sensor types. In a large-scale industrial monitoring system, the PCI-6220 can be used in conjunction with an SCXI-1000 chassis and various SCXI modules to monitor different parameters from multiple sensors across a factory floor.

NI LabVIEW Professional Development System: This software suite is ideal for programming and controlling the PCI-6220. LabVIEW’s graphical programming environment makes it easy to develop applications for data acquisition, analysis, and control. Engineers can use LabVIEW to create custom interfaces for the PCI-6220, allowing for real-time monitoring and control of experiments or industrial processes.

NI PCI-6259: A higher-end alternative in NI’s PCI DAQ product line. It offers even higher analog input resolution (24-bit) and faster sampling rates (up to 1.25 MS/s), making it suitable for applications that require extremely high precision and fast data capture, such as in high-frequency signal analysis or advanced scientific research.

NI USB-6216: A USB-based DAQ device that can be a more portable option compared to the PCI-6220. It has similar analog and digital I/O capabilities but connects via USB, making it convenient for on-site testing or applications where a PCI slot is not available. For example, in a field service technician’s toolkit, the USB-6216 can be used to quickly diagnose and test equipment in the field.

Installation, commissioning and maintenance instructions

Installation Preparation: Before installing the PCI-6220, ensure that the host computer has an available standard PCI slot. Power off the computer and use a screwdriver to open the computer case. Ground yourself using an anti-static wristband to prevent electrostatic discharge (ESD) damage to the card. Install the NI-DAQmx software from the provided CD or download it from the NI website. Align the PCI-6220 with the PCI slot and firmly press it into place until it is fully seated. Secure the card to the computer case with the provided screw. Close the computer case and power on the computer. The operating system should detect the new hardware if the drivers are installed correctly.

Commissioning: After installation, open the NI-DAQmx configuration utility. This utility allows you to configure the settings for the PCI-6220, such as analog input ranges, digital I/O directions, and counter/timer settings. Test the card by connecting a known sensor or signal source to the appropriate channels and use the NI-DAQmx software to acquire data. Verify that the acquired data is accurate and within the expected range. If there are any issues, double-check the connections, settings, and ensure that the drivers are up to date.

Maintenance Suggestions: Regularly inspect the PCI-6220 for any signs of physical damage, such as bent pins on the connectors. Clean the card and its connectors periodically using compressed air to remove dust and debris, which can affect the performance of the card. To maintain measurement accuracy, consider calibrating the card at regular intervals, especially if it is used in critical applications. If the card experiences issues such as incorrect data readings or communication problems, first check the software settings, update the drivers, and then verify the physical connections. In case of persistent problems, contact NI’s technical support for further assistance.

Service and guarantee commitment

National Instruments provides a standard warranty for the PCI-6220, covering defects in materials and workmanship. The warranty period gives users peace of mind, knowing that if the card fails due to manufacturing issues, it will be repaired or replaced. NI also offers a global technical support team that is available to assist users with any questions or problems related to the PCI-6220. Whether it’s software configuration, hardware compatibility, or troubleshooting, the support team can be reached via email, phone, or online forums.

In addition, NI provides a wealth of online resources for the PCI-6220, including user manuals, application notes, and software development kits. These resources help users get the most out of the device, from initial installation to developing complex applications. For customers with critical applications, NI may offer extended support contracts, which can include priority technical assistance, software updates, and additional calibration services, ensuring the long-term reliability and performance of the PCI-6220.
