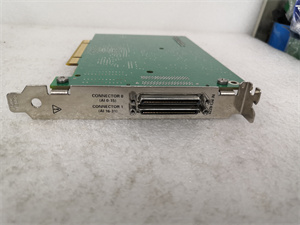

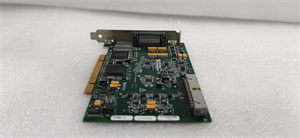

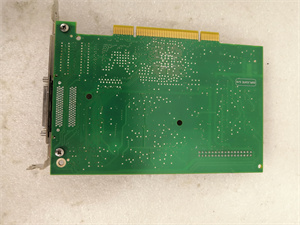

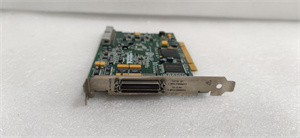

NI PCI-6229

Description

Product Overview

The NI PCI-6229 is a high-performance multifunction data acquisition (DAQ) card developed by National Instruments (NI), a renowned leader in the measurement and automation industry. As a key member of NI’s PCI – based DAQ product lineup, the PCI-6229 is engineered to deliver reliable and precise data acquisition and control capabilities across diverse applications. This versatile card integrates analog input, analog output, digital I/O, and counter/timer functions, making it an essential tool for engineers, researchers, and developers who need to interface with real – world signals and automate complex processes.

Built on the PCI bus standard, the NI PCI-6229 seamlessly integrates into desktop computers, serving as a vital link between physical sensors, actuators, and computer – based control and analysis software. In industrial settings, it can monitor and control various processes by accurately measuring parameters like temperature, pressure, and flow rates. In research laboratories, it enables scientists to collect detailed data from experiments, facilitating in – depth analysis and discovery. With its advanced features and robust performance, the NI PCI-6229 plays a pivotal role in enhancing the efficiency and accuracy of data – driven operations, making it a go – to choice for professionals seeking reliable DAQ solutions.

Technical Specifications

NI PCI-6229

Main Features and Advantages

High – Precision Data Acquisition

The NI PCI-6229 boasts a 16 – bit analog input and output resolution, ensuring highly accurate data conversion. This high – precision feature allows it to capture even the slightest variations in input signals, making it ideal for applications that demand detailed and precise measurements. Whether it’s monitoring minute electrical changes in a circuit or tracking subtle physical parameter fluctuations, the PCI-6229 delivers reliable and accurate data, enabling users to make informed decisions based on precise information.

Fast Sampling Speeds

With an analog input sampling rate of up to 250 kS/s, the NI PCI-6229 can rapidly acquire data, keeping pace with fast – changing signals. In applications such as high – speed vibration analysis, real – time monitoring of dynamic processes, or capturing transient events, this fast sampling rate ensures that no data is overlooked. It provides a comprehensive and accurate representation of the measured phenomena, allowing for in – depth analysis and effective control strategies.

Versatile I/O Configuration

Featuring a combination of analog input, analog output, digital I/O, and counter/timer channels, the PCI-6229 offers unparalleled flexibility in system design. Engineers can configure the card according to the specific requirements of their projects, whether it’s controlling robotic arms with digital I/O, performing complex data acquisition tasks with multiple analog channels, or implementing precise timing and counting operations using the counter/timer functions. This versatility eliminates the need for multiple separate cards, streamlining the system setup, reducing costs, and enhancing overall system efficiency.

Software Compatibility and Ease of Use

The NI PCI-6229 is fully compatible with NI – DAQmx driver software, which provides an intuitive programming interface for a wide range of programming languages, including LabVIEW, C, C++, and Python. This compatibility makes it accessible to developers with diverse programming backgrounds, enabling them to quickly develop customized data acquisition and control applications. The user – friendly software interface simplifies the configuration and operation of the PCI-6229, reducing development time and effort, and facilitating the integration of the card into various projects.

NI PCI-6229

Application Field

The NI PCI-6229 finds extensive use across multiple industries and applications. In the automotive industry, it is employed in vehicle testing and development, where it measures engine performance parameters, monitors vehicle dynamics, and tests electronic control units. By accurately capturing data, engineers can optimize vehicle design, improve fuel efficiency, and enhance overall vehicle performance.

In the aerospace sector, the PCI-6229 plays a crucial role in testing aircraft components and systems. It can monitor the structural integrity of aircraft parts by measuring strain, vibration, and temperature, ensuring the safety and reliability of aircraft during flight. In research and development laboratories, it is used for a wide range of experiments, from material testing to studying biological signals, enabling scientists to collect and analyze data for new discoveries and advancements.

In industrial automation, the NI PCI-6229 is integrated into control systems to monitor and control production processes. It can adjust machine operations based on real – time data, optimize production efficiency, and ensure product quality. Additionally, it is used in environmental monitoring applications to measure air quality, water quality, and other environmental parameters, providing valuable data for environmental protection and management.

Related Products

• NI PCI – 6251: A high – end multifunction DAQ card, it offers higher analog input sampling rates (up to 1.25 MS/s) and more analog input channels (32 single – ended / 16 differential) compared to the PCI-6229. It is suitable for applications that demand extremely high – speed data acquisition and a larger number of channels, such as high – frequency signal analysis and large – scale data monitoring.
• NI PCI – 6733: Specializing in analog output, this card provides 32 analog output channels with 16 – bit resolution. It is ideal for applications where precise analog signal generation is required, such as in signal simulation, test equipment calibration, and audio processing systems.
• NI PCI – 6534: Offering a high – density digital I/O solution with 48 TTL – level digital I/O lines, the PCI – 6534is designed for applications focused on digital signal processing and control. It can be used in conjunction with the PCI-6229 to expand the digital I/O capabilities of a system, enabling more complex digital control tasks.
• NI PCI – 6612: A high – performance counter/timer card, it features 4 32 – bit counter/timer channels. It is suitable for applications that require accurate timing and counting operations, such as motion control, pulse width modulation, and frequency measurement. When paired with the PCI-6229, it enhances the overall timing and control capabilities of the system.
• NI PCI – 6115: A cost – effective multifunction DAQ card, it has 16 analog input channels, 2 analog output channels, and 24 digital I/O lines. While it offers similar functionality to the PCI-6229, it is more budget – friendly and suitable for applications that do not require the high – end features and performance of the PCI-6229, but still need reliable data acquisition and control capabilities.

Installation and Maintenance

Pre – installation preparation

Before installing the NI PCI-6229, ensure that your computer has an available 32 – bit, 33 MHz PCI slot. Power off the computer and disconnect it from the power source to prevent electrical shock. Open the computer case carefully and locate the PCI slot. Remove the slot cover and gently insert the PCI-6229 card into the slot, making sure it is fully seated and properly aligned. After installation, close the computer case and power on the system. Install the latest version of the NI – DAQmx driver software from the official NI website to ensure optimal performance and compatibility with the card.

Maintenance recommendations

Regularly check the connections between the NI PCI-6229 and external devices to ensure they are secure and free from any damage. Avoid excessive bending or pulling of the cables, as this can cause connector damage and lead to data transmission issues. Periodically update the NI – DAQmx driver software to benefit from the latest performance improvements, bug fixes, and new features. If the card experiences any malfunctions, such as inconsistent data acquisition or communication errors, refer to the NI product documentation for troubleshooting steps. Additionally, keep the computer case clean and well – ventilated to prevent dust accumulation, which can affect the card’s performance and lifespan.

Product Guarantee

We are committed to the quality and performance of the NI PCI-6229 multifunction data acquisition card. Each unit undergoes strict quality control and testing procedures to ensure it meets the highest industry standards. The PCI-6229 comes with a comprehensive warranty that covers any manufacturing defects, providing you with peace of mind. In addition, our dedicated technical support team is available to assist you with any questions or issues you may encounter. Whether it’s software – related problems, hardware troubleshooting, or application – specific inquiries, we are dedicated to providing prompt and effective solutions. We stand behind the NI PCI-6229 and are confident that it will meet your data acquisition and control needs with reliable and long – lasting performance.
