Woodward 8290-185
Woodward 8290-185 - Image 2
Woodward 8290-185 - Image 3

Woodward 8290-185

  • Hydraulic-Free Design: Reduces maintenance costs and eliminates oil-related failures.
  • High Torque Output: Up to 2.3 J (1.7 ft-lb) for robust fuel control.
  • Isochronous Control: Maintains constant speed under varying loads.
  • Dual Dynamics: Switch-selectable for optimized response to transient conditions.
  • Start-Fuel Limiting: Minimizes smoke during engine startups.
  • Wide Temperature Range: Operates reliably in extreme environments.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.

Description

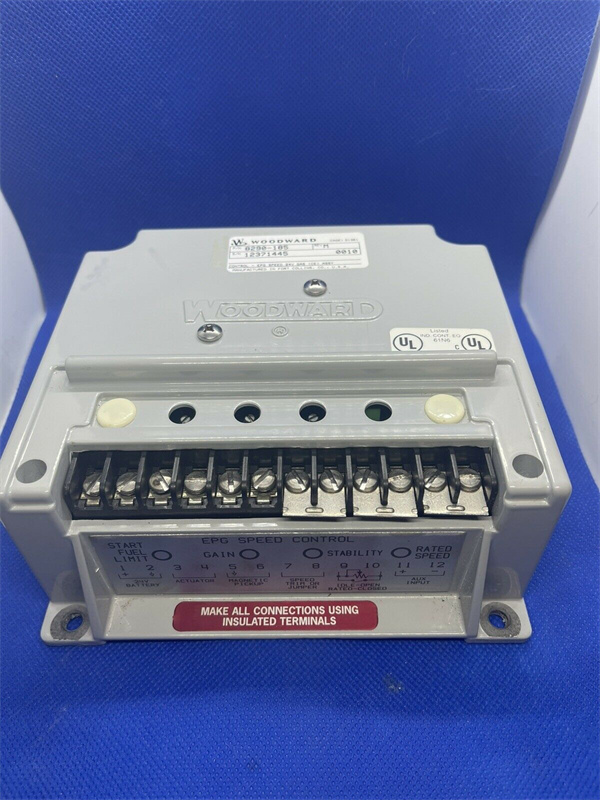

WOODWARD 8290-185 Electrically Powered Governor (EPG) System

1. Product Description

The WOODWARD 8290-185 is a high-efficiency digital speed controller designed for gas engines, gasoline engines, and gas turbines in industrial power generation, oil & gas, and mobile equipment applications. As part of Woodward’s Electrically Powered Governor (EPG) series, the 8290-185 eliminates the need for mechanical drives or hydraulic oil systems, offering a compact, cost-effective solution for precise speed regulation. It supports isochronous control, load sharing, and start-fuel limiting, making it ideal for prime movers with low-mass, low-friction fuel linkages.

2. Product Parameters

Parameter Specification
Input Voltage 24 VDC
Actuator Compatibility 524 (1.0 J) or 1724 (2.3 J)
Speed Range 3,000–6,000 Hz
Temperature Range -40°C to +75°C
Maximum Power Consumption 95 W
Magnetic Pickup Requirement ≥1.5 VRMS
Certifications EU Directive compliant

3. Advantages and Features

  • Hydraulic-Free Design: Reduces maintenance costs and eliminates oil-related failures.
  • High Torque Output: Up to 2.3 J (1.7 ft-lb) for robust fuel control.
  • Isochronous Control: Maintains constant speed under varying loads.
  • Dual Dynamics: Switch-selectable for optimized response to transient conditions.
  • Start-Fuel Limiting: Minimizes smoke during engine startups.
  • Wide Temperature Range: Operates reliably in extreme environments.

4. Application Areas and Case Studies

  • Power Generation: Used in backup generators and microgrids for stable frequency control.
  • Oil & Gas: Deployed in remote compressor stations to manage gas engine-driven pumps.
  • Marine: Controls auxiliary engines on vessels for consistent power supply.
Case Study:
A North American natural gas plant reduced downtime by 15% using the 8290-185 with a 1724 actuator to stabilize turbine speeds during load fluctuations.

5. Competitor Comparison

  • Simpler Installation: No hydraulic lines or mechanical linkages required.
  • Flexible Actuator Options: Supports multiple torque outputs (524/1724) compared to single-output alternatives.
  • Energy Efficiency: Lower power consumption (95 W) than legacy hydraulic systems.

6. Selection Recommendations

  • Voltage Compatibility: Ensure a 24 VDC power supply is available.
  • Actuator Choice: Select the 524 (1.0 J) for lighter loads or the 1724 (2.3 J) for heavy-duty applications.
  • Accessories: Add a ramp generator for smoother acceleration/deceleration in generator setups.

7. Precautions

  • Actuator Alignment: Ensure the actuator’s rotation direction matches the fuel control mechanism.
  • Battery Charger: Use a minimum 5 A charger to maintain system reliability.
  • Linkage Linearity: Calibrate fuel linkages according to Woodward’s manual 82493 to avoid control errors.
  • Environmental Protection: Install in dry, vibration-free enclosures to prevent component damage.
